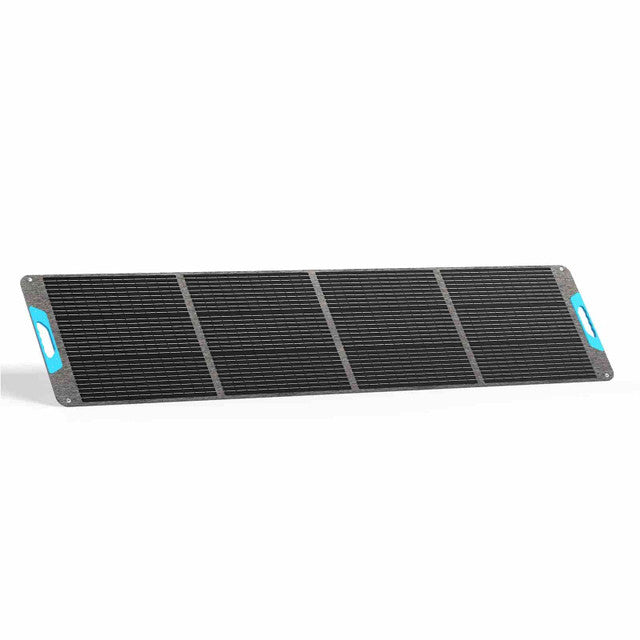

The 200W E.Flex solar panel delivers up to 500Wh per day, making it ideal for camping, fishing, or short trips.

Weighing only 17.6 lbs, it folds to a compact 25x21.1x2.2 inches for easy portability and reliable power wherever the sun shines.

Efficient 60A Charging Performance

  • Provides a powerful 60A charging current for fast, reliable charging
  • Supports deep-cycle house batteries during RV, van, or off-grid travel
  • Ensures consistent energy delivery from alternator to battery

Compatible With 12V Battery Systems

  • Designed exclusively for 12V DC electrical systems
  • Works with lithium, AGM, gel, and flooded lead-acid batteries
  • Smart charging profile adapts to battery chemistry

Multi-Stage Charging With DIP Switch Controls

  • Features 6 voltage settings for custom charge profiles
  • DIP switches allow precise configuration for your battery type
  • SW5 switch selects lithium or lead-acid mode

D+ Ignition Detection for Battery Protection

  • Prevents over-discharge of the starter battery
  • Charger only activates when the alternator is running
  • Includes D+ input to safely manage charge cycles

Safe & Reliable Operation

  • Idle consumption below 0.4A
  • Built with high-quality components for long-term durability
  • Overload, overheat, and short-circuit protection

Compact & Durable Build

  • Space-efficient size: 12.2 Γ— 6.9 Γ— 2.7 in
  • Lightweight design at only 5.3 lbs (2.4 kg)
  • Rugged construction suitable for mobile and off-grid setups

Ideal for RVs, Vans & Marine Use

  • Converts alternator output into a regulated charge for house batteries
  • Perfect for camper vans, RVs, overlanding, and marine charging systems


Electrical Specifications

  • Maximum Power (STC): 200W
  • Open Circuit Voltage (Voc): 21.6V
  • Short Circuit Current (Isc): 11.3A
  • Optimum Operating Voltage (Vmp): 18.8V
  • Optimum Operating Current (Imp): 10.6A

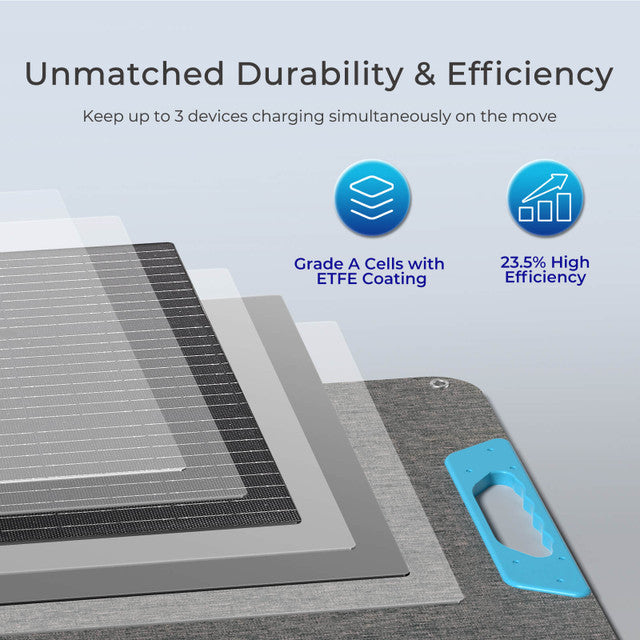

  • Cell Efficiency: >25%


Operating Conditions

  • Operating Temperature Range: 14Β°F to 149Β°F (-10Β°C to +65Β°C)
  • Waterproof Rating: IP65


Dimensions & Weight

  • Folded Dimensions: 23.72 Γ— 22.99 Γ— 1.97 in (602.5 Γ— 584 Γ— 50 mm)
  • Unfolded Dimensions: 87.80 Γ— 22.99 Γ— 0.12 in (2230 Γ— 584 Γ— 3 mm)
  • Weight: 13.89 lbs (6.3 kg)


Certifications

  • CE / RoHS: Yes
  • FCC: Yes
  • CA65: Yes
  • PSE: Yes
  • ISO 9001 Manufacturing: Yes


What can this solar panel charge?
The eflex 200w portable solar panel can charge most 12v batteries (when used with a charge controller) and portable power stations. always ensure the panel’s open circuit voltage does not exceed the maximum dc input voltage rating of your power station or charge controller.
Why is my solar panel under producing?
Reduced output may be caused by indirect sunlight, high temperatures, cloudy conditions, shading, or dirt accumulation on the panel surface. cleaning the glass and ensuring direct sunlight will improve performance.
How should i connect solar panels in my electrical circuit (series vs parallel)?
Series connections increase voltage while keeping current the same. parallel connections increase current while keeping voltage the same. your choice depends on system size, controller rating, and power demand. many setups use a combination of both for optimal output.
How many solar panels do i need?
Determine your required power load in watts and your needed battery capacity in watt-hours. a general formula is: watts Γ— hours Γ— 1.5–2 (safety factor). after calculating battery capacity, select the number of panels needed to replenish that energy daily based on your available sunlight.
