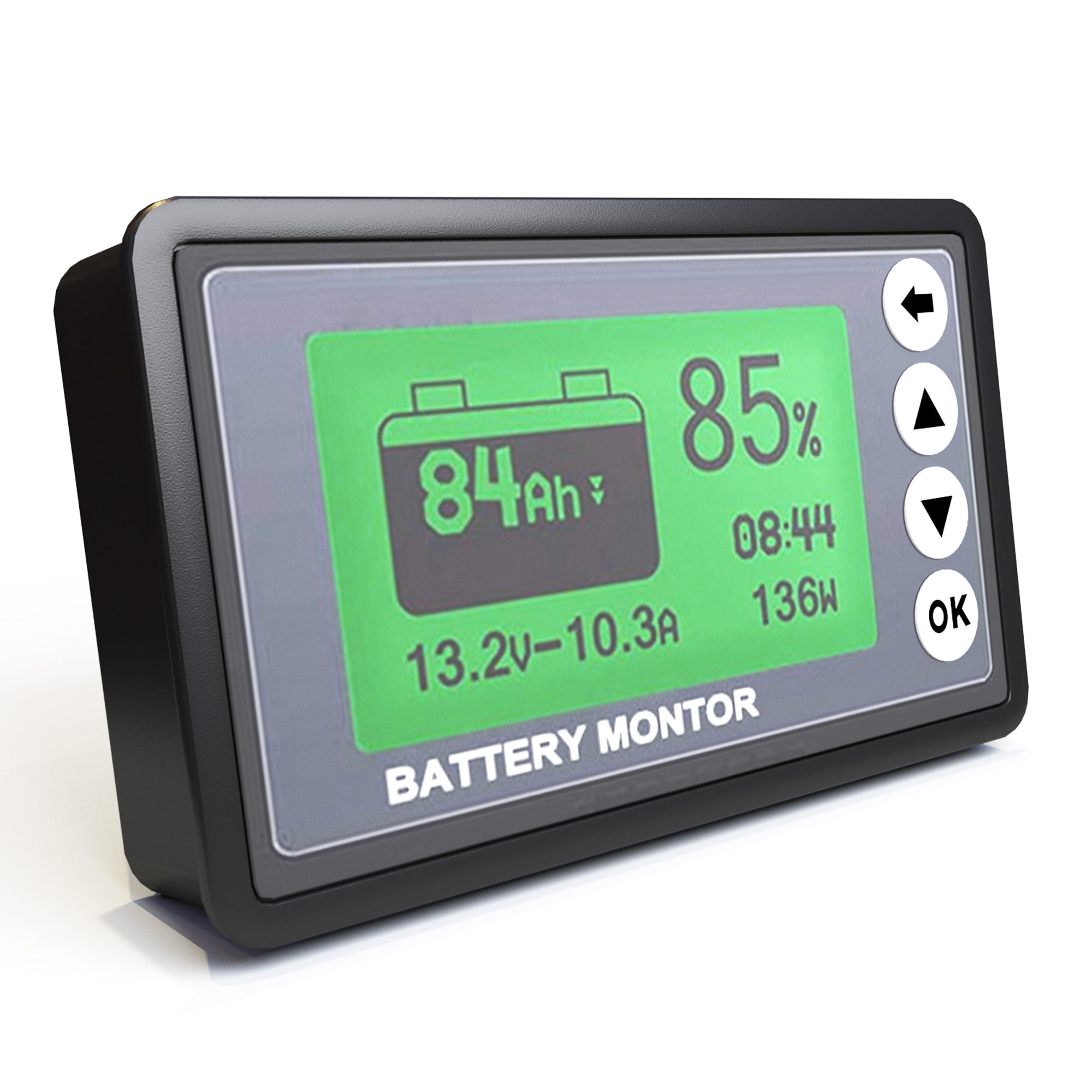

The ACOPOWER 500 Amps Battery Monitor gives an at-a-glance readout of a battery bank's health, similar to a fuel gauge for your electrical system. It tracks voltage, charge and discharge current, power draw in watts, remaining capacity in both amp-hours and percentage, and estimated time remaining, all from a single compact display panel.

Built to work with most 12V-120V battery bank configurations up to 9,999 amp-hours and currents up to 500A, the monitor is equally at home on small RV battery banks or larger off-grid and marine systems. Programmable high/low voltage and low-capacity alarms provide an early warning before a battery bank is pushed too far, which helps extend battery life and avoid unexpected failures.

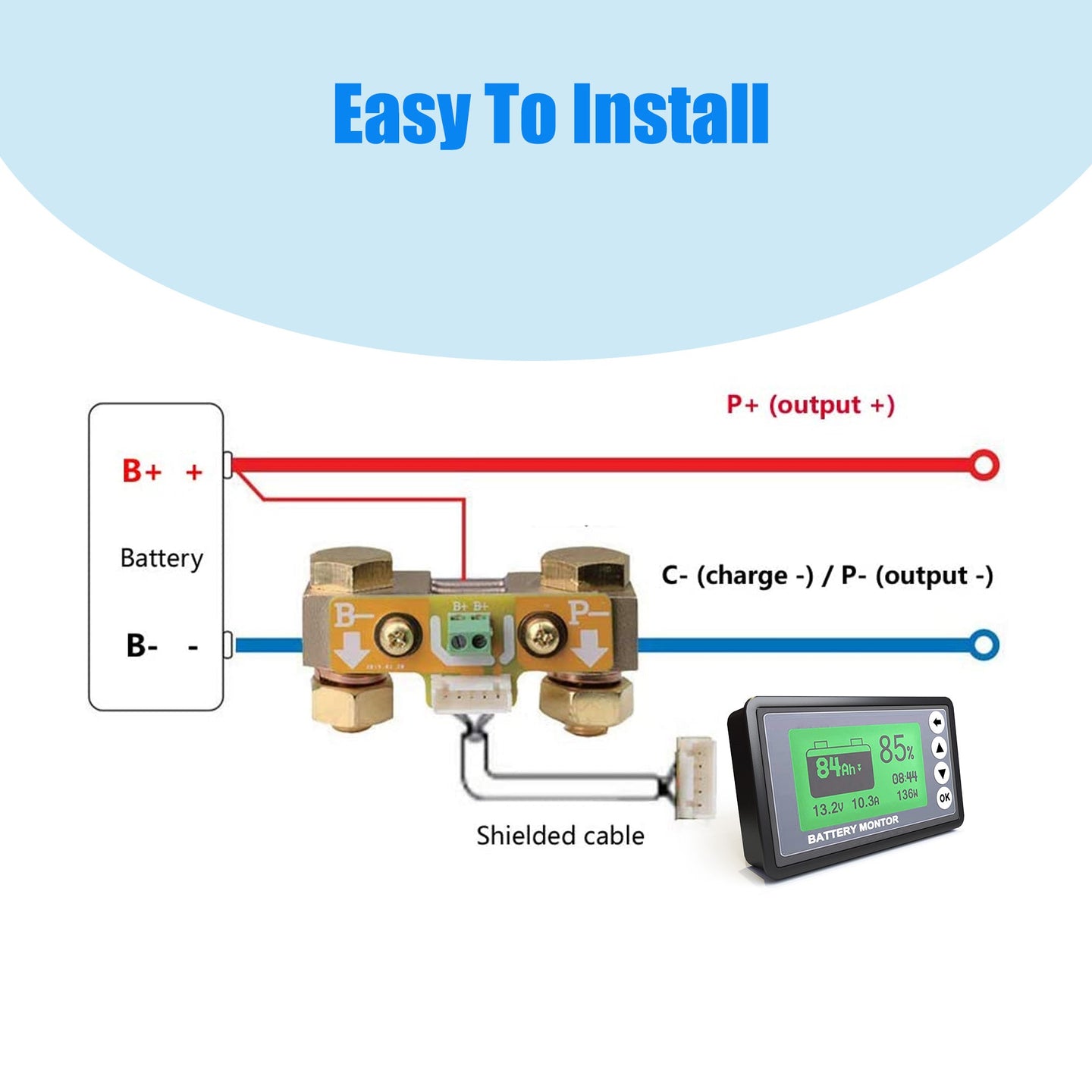

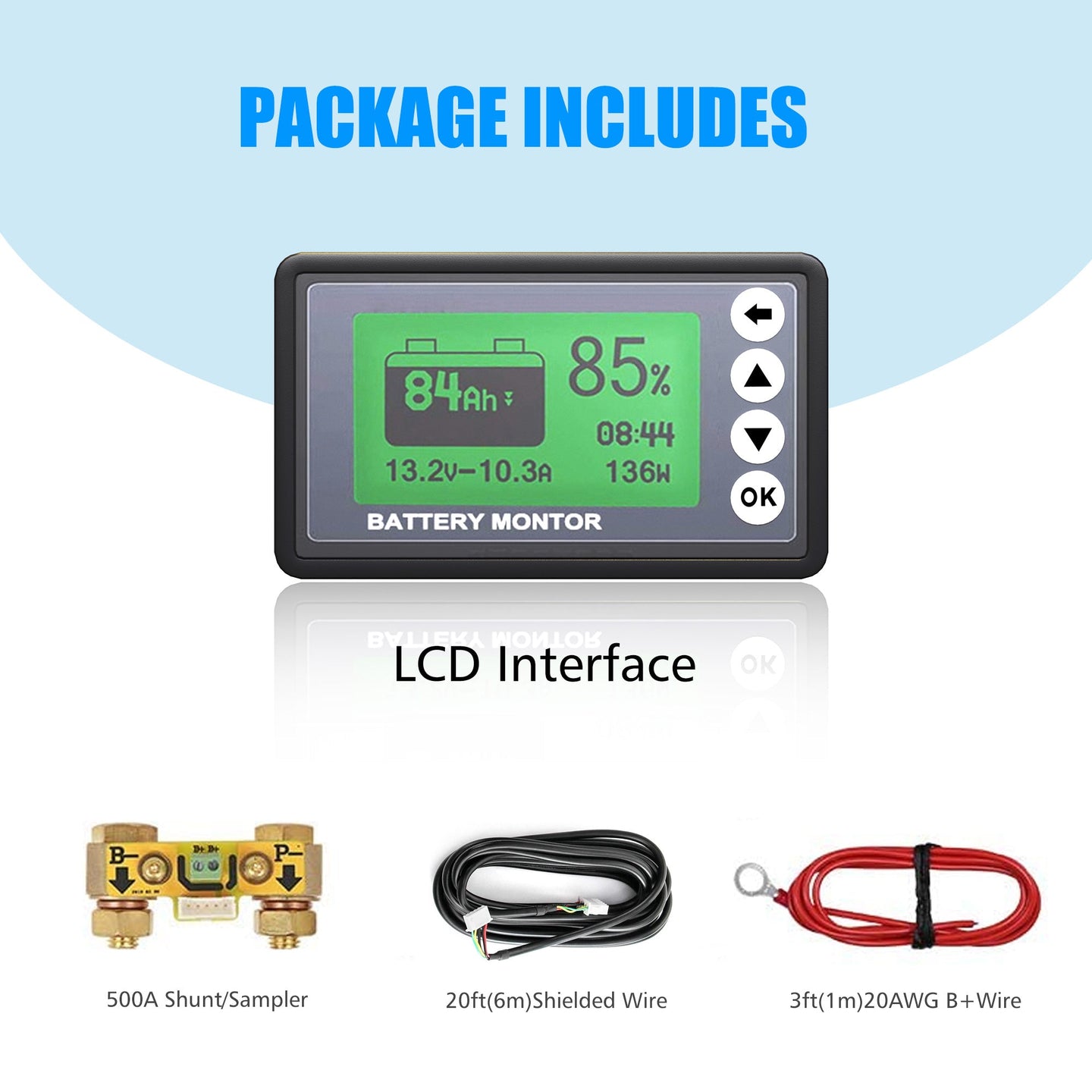

The kit includes the monitor head unit, a 500A shunt, a 20-foot signal cable, a 3-foot battery cable, and an English instruction manual, so everything needed for a standard installation is in the box.

  • Working voltage range: 10.0-120.0V
  • Current range: -500A to +500A
  • Capacity range: 0-9,999 ampere-hours
  • Working consumption: 10.0-15.0mA; Standby consumption: 1-2mA
  • Voltage/current/capacity accuracy: ±1.0%

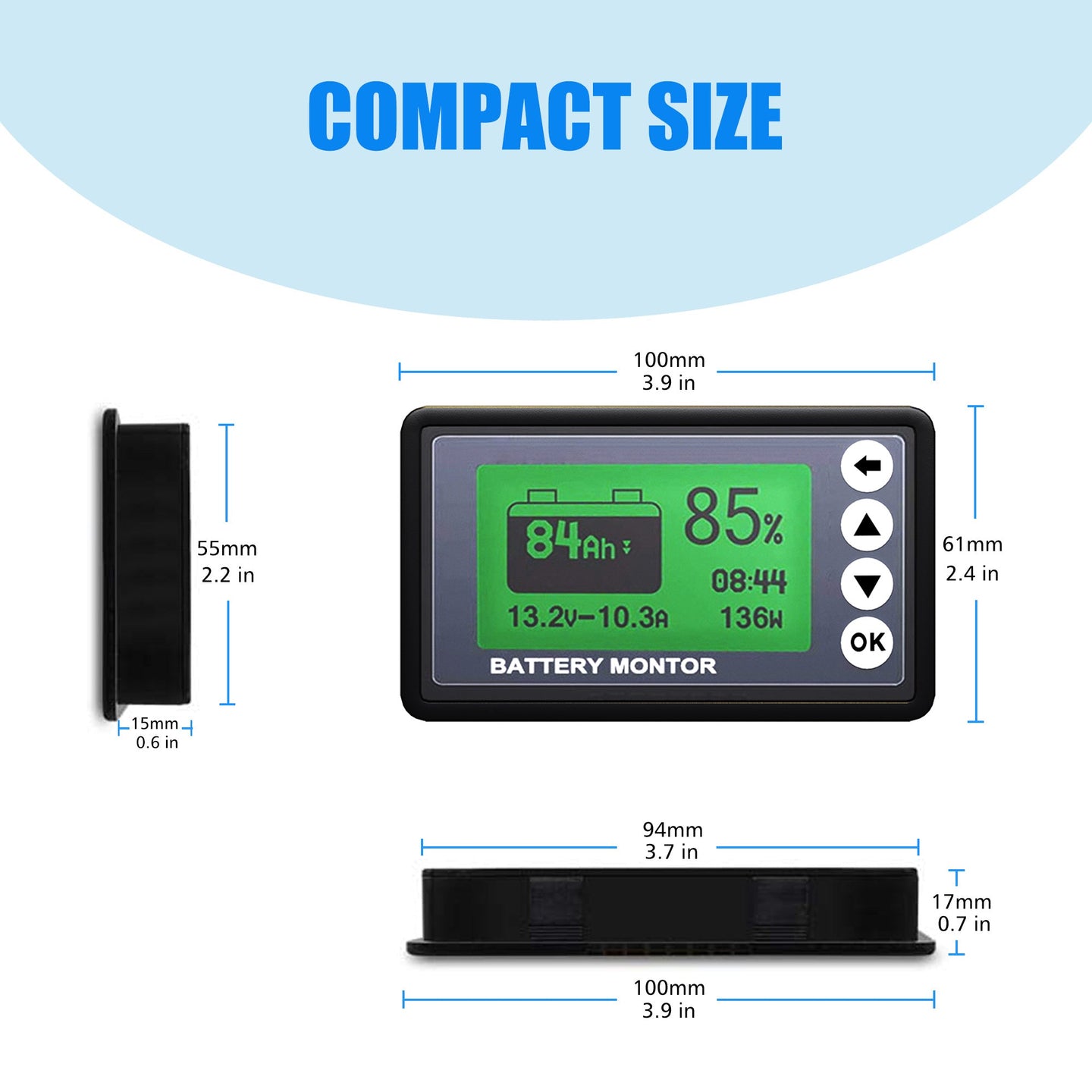

  • Monitor size: 100 x 61 x 17mm
  • Panel cut-out: 94 x 57mm

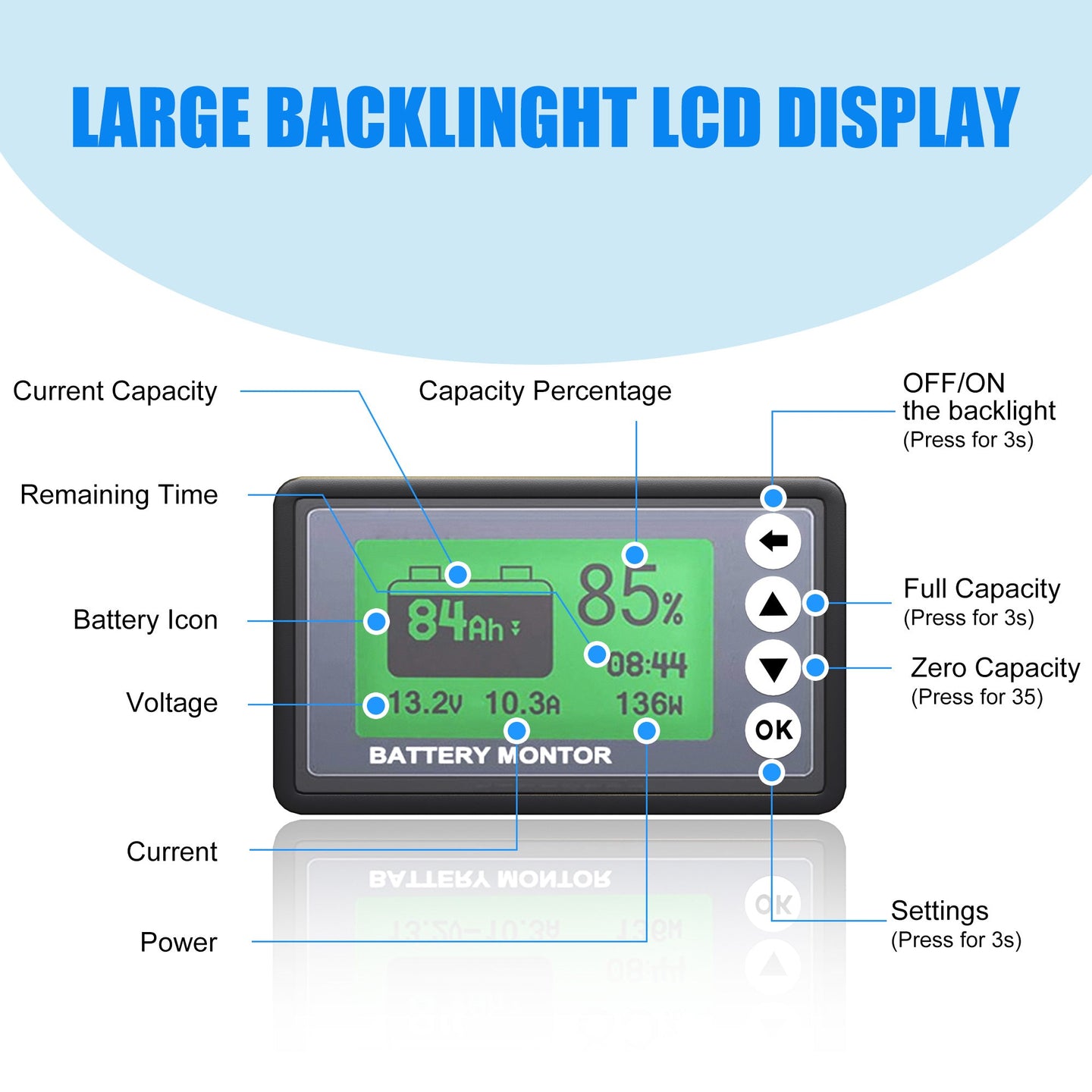

  • Real-time voltage, current, wattage, and capacity display
  • Displays remaining battery capacity in Ah and percentage, plus estimated time remaining
  • Programmable high/low voltage and low-capacity alarms
  • Compatible with most 12V-120V battery bank types
  • Includes 500A shunt, cables, and mounting-ready panel cut-out

ACOPOWER solar and power equipment carries a limited warranty against manufacturer's defects in material and workmanship, running from the date of purchase (typically 12-24 months depending on the product line).

The warranty covers defects in material and workmanship. It does not cover damage from negligence, improper installation, unauthorized repairs or modifications, or damage from accidents or extreme weather beyond rated specifications. To file a warranty claim, contact Adventure Motion customer support with your order details.

What size battery banks is this monitor compatible with?
It works with battery banks from 10v to 120v, with capacities up to 9,999 amp-hours and currents up to 500a.
What's included with the monitor?
The monitor head unit, a 500a shunt, a 20 ft cable, a 3 ft battery cable, and an english operation manual.
Does it have alarms for low battery?
Yes, it includes programmable high/low voltage and low-capacity alarms.
Can this replace a simple voltmeter?
Yes, and it provides more detail than a basic voltmeter, including current draw, remaining ah, percentage charge, and estimated runtime.
What is the accuracy of the readings?
Voltage, current, and capacity readings are all rated at approximately ±1.0% accuracy.
