Renogy 200 Watt 12 Volt Monocrystalline Solar Panel with 40 Amp MPPT Charge Controller

Renogy

Renogy 200 Watt 12 Volt Monocrystalline Solar Panel with 40 Amp MPPT Charge Controller

SKU RKIT200SP-R40D1

Regular price: $469.99

Authorized Renogy Dealer

Manufacturer Warranty Included

✓ Fast & Free Shipping
✓ Flexible Financing Available
✓ 30-Day Returns
✓ 24/7 Support

Delivery: 5–10 Business Days

Use code:

ADVENTURE5 (Extra 5% OFF)

Stack extra discounts? Call (877) 834-4299

Quantity

Renogy

Renogy 200 Watt 12 Volt Monocrystalline Solar Panel with 40 Amp MPPT Charge Controller

SKU RKIT200SP-R40D1

Have Questions?

Talk to an Expert

Our U.S.-based team can help you choose the right gear, configure the perfect setup, or put together a custom quote for your project.

Call (877) 834-4299 Request a Quote

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimated Shipping Time

We offer free shipping on all orders across the contiguous United States. Orders are typically processed within 1–3 business days, and standard delivery takes 5–10 business days. Freight and oversized items take 7–14 business days and may require a scheduled delivery.

What Is Your Return Policy?

We offer a 30-day return window on eligible items from the date of delivery. Products must be unused, in original condition, and returned in their original packaging. To start a return, contact us at support@adventuremotion.com or call (877) 834-4299. Return shipping costs may apply for non-defective items. Damaged or defective items are replaced at no cost to you.

Frequently Asked Questions

Do you offer financing?

Yes — we partner with Affirm so you can split your purchase into easy monthly payments with 0% APR options. Just select Affirm at checkout.

Are you an authorized dealer?

Yes. Adventure Motion is an authorized online dealer for all brands we carry. That means your manufacturer warranty is fully valid and protected.

Can you help me choose the right product?

Absolutely. Call us at (877) 834-4299 or email support@adventuremotion.com — our team specializes in outdoor gear and adventure equipment and can match you to the right product.

What if my item arrives damaged?

Contact us within 48 hours of delivery at support@adventuremotion.com. We'll arrange a replacement or exchange at zero cost to you — no questions asked.

Need items in bulk? Contact us for a custom quote or invoice.

Save an additional 3% off your order when paying via ACH or Wire transfer.

Product Description

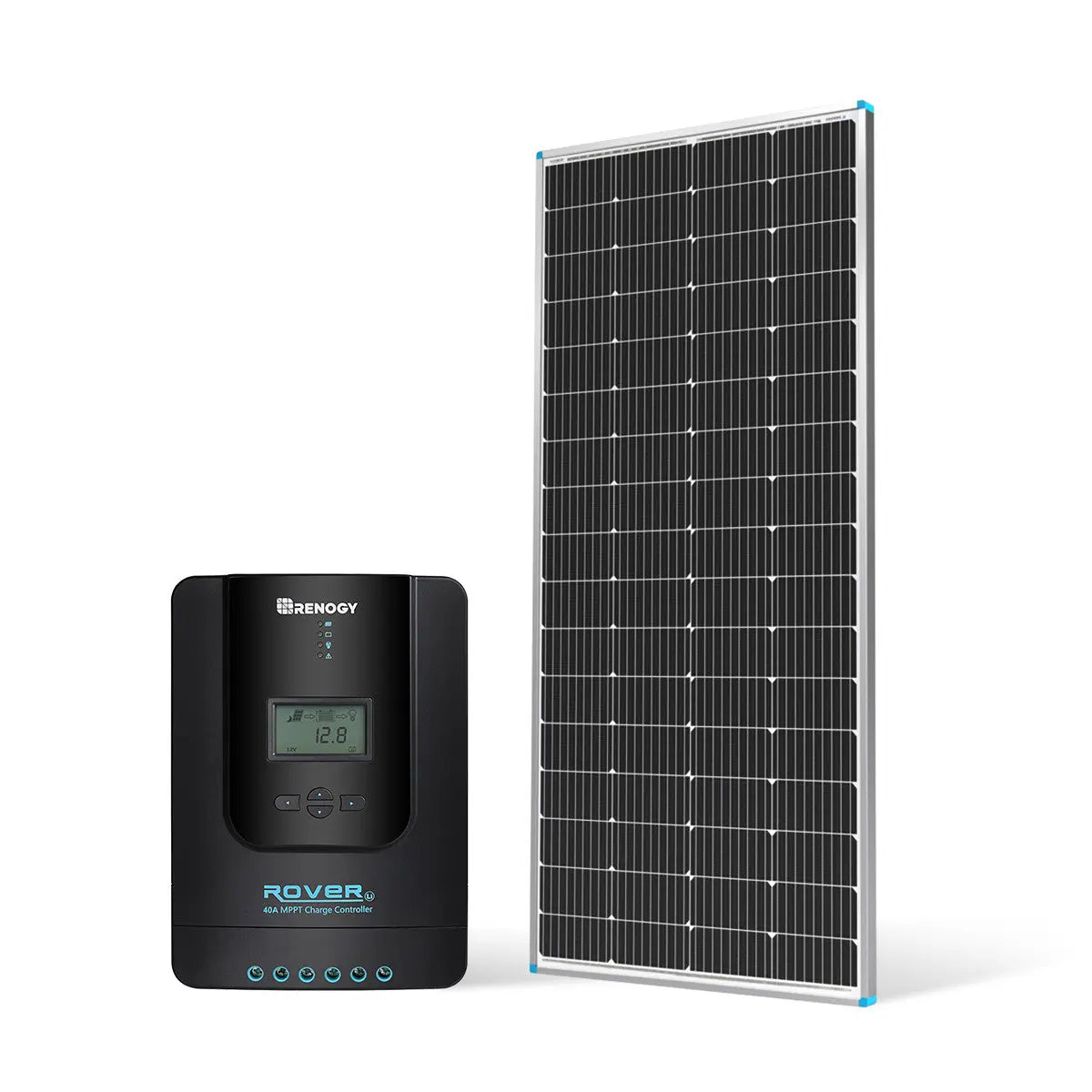

The Renogy 200 Watt 12 Volt Monocrystalline Solar Panel with 40 Amp MPPT Charge Controller pairs a single 200W panel with a 40A MPPT controller, giving you a simple foundation for charging a 12V battery system in an RV, van, shed, or small off-grid setup. In good conditions with 5–6 hours of direct sun, the panel can produce roughly 1,000 watt-hours of energy per day.

The panel uses Grade A+ monocrystalline cells with PERC technology and nine busbars, which improve light capture and conductivity for better overall efficiency. Half-cut cells and bypass diodes help it keep producing when part of the panel is shaded and reduce the risk of hotspot overheating.

A sturdy anodized aluminum alloy frame and an IP65-rated junction box are designed for long outdoor service. Pre-drilled holes on the back make mounting easy and are compatible with Renogy mounting options such as Z-brackets, pole mounts, and tilt mounts.

Specifications

200W Monocrystalline Solar Panel

Max Power at STC: 200W
Open Circuit Voltage: 23V
Short Circuit Current: 11.05A
Optimum Operating Voltage: 19.2V
Optimum Operating Current: 10.42A
Module Efficiency: 19.2%
Solar Cells: 68 cells (4 x 17)
Maximum System Voltage: 600VDC (UL)
Output Cable: 13AWG, 2.6 ft (0.9 m)
Connectors: Solar connectors
Junction Box: IP65
Frame: Anodized aluminum alloy
Operating Temperature: -40°F to 194°F (-40°C to 90°C)
Dimensions: 58.7 x 27.5 x 1.38 in (1491 x 699 x 35 mm)
Weight: 26.46 lb (12 kg)

Charge Controller

Type: MPPT
Rated Charge Current: 40A

Features

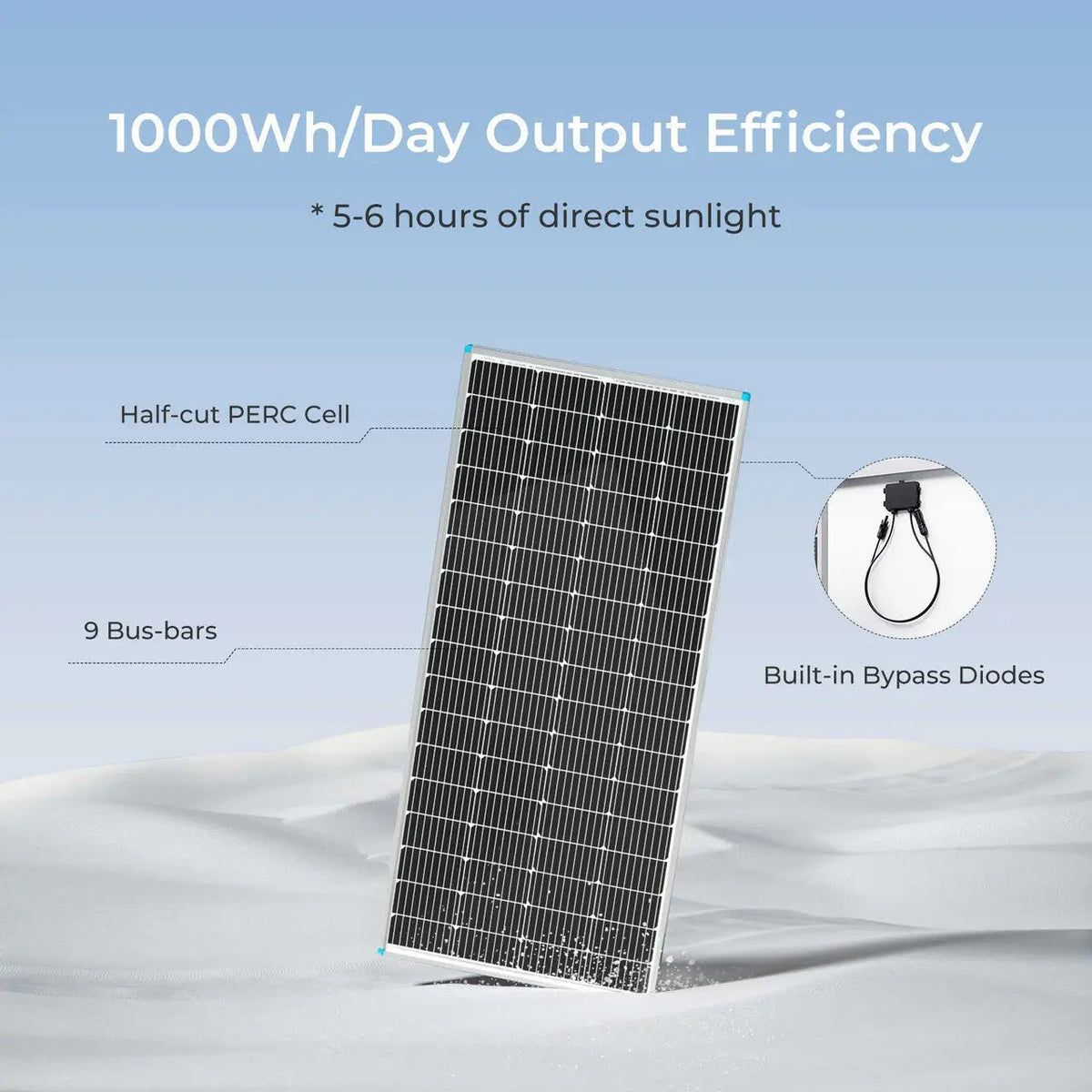

Produces about 1,000Wh per day with 5–6 hours of direct sunlight
Grade A+ monocrystalline cells with PERC technology and 9 busbars
Half-cut cells and bypass diodes improve performance under partial shading
Bypass diodes help protect against hotspot overheating
Durable anodized aluminum frame and IP65 junction box
Pre-drilled holes compatible with Renogy Z-brackets, pole mounts, and tilt mounts
Paired with a 40A MPPT charge controller for efficient battery charging

Frequently Asked Questions

How much energy can the 200w panel produce per day?

About 1,000 watt-hours per day with 5–6 hours of direct sunlight. actual output depends on location, weather, and panel angle.

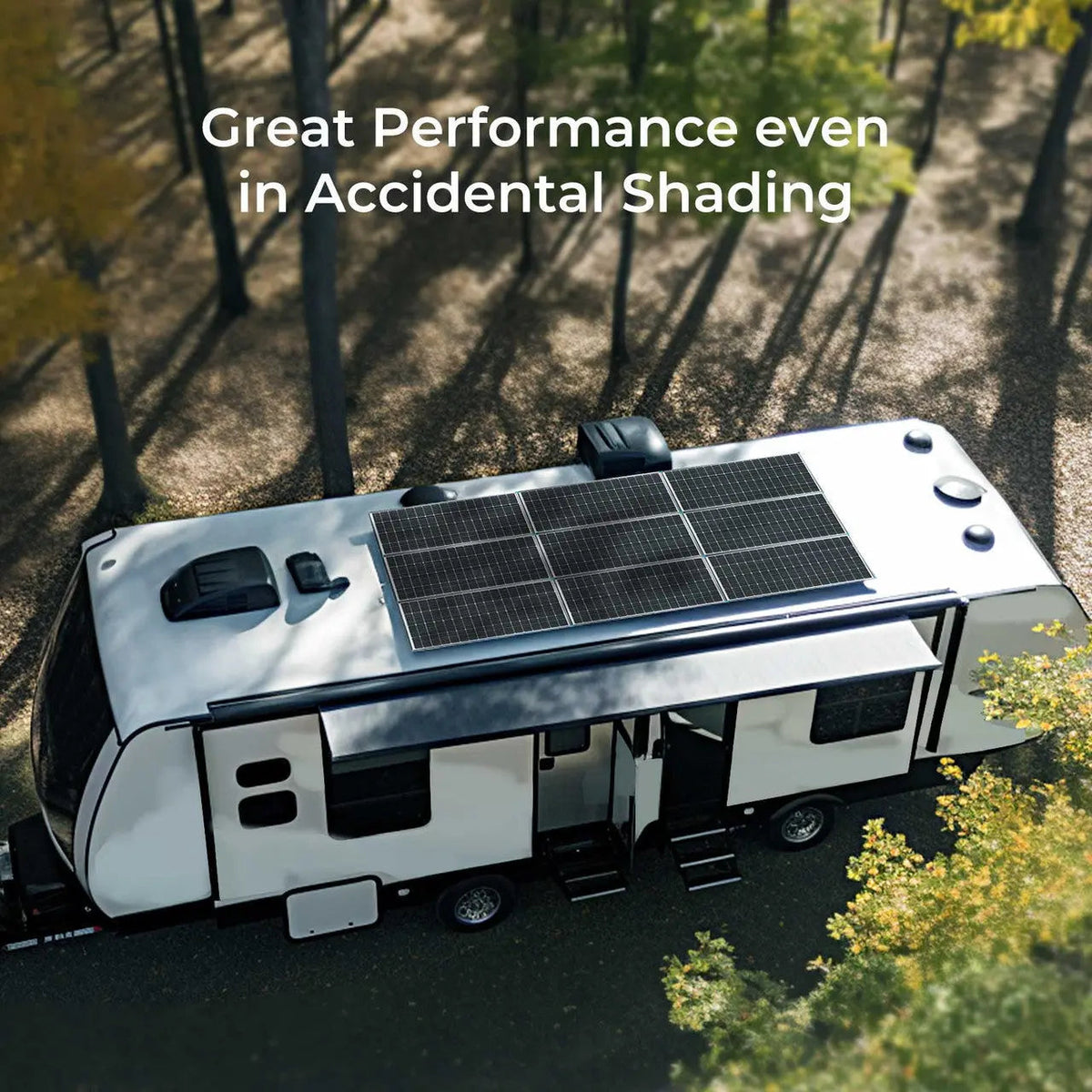

How does the panel handle partial shade?

Half-cut cells and bypass diodes help keep the panel producing when part of it is shaded and protect it against hotspot overheating.

What are the panel's dimensions and weight?

It measures 58.7 x 27.5 x 1.38 in (1491 x 699 x 35 mm) and weighs 26.46 lb (12 kg).

What mounting options are compatible?

The pre-drilled holes on the back work with renogy mounting systems, including z-brackets, pole mounts, and tilt mounts.

What warranty does the panel carry?

Renogy provides a 10-year workmanship warranty and a 25-year warranty for 80% power output.

What is the panel's open circuit voltage?

The open circuit voltage is 23v, with an optimum operating voltage of 19.2v.
