Renogy 400W 12V Complete Solar Panel Kit with 3.6kWh Battery

SKU RKIT400BD-R40D4-LCFP3-P3-US
$2,499.99
Brand Logo

Authorized Renogy Dealer

Manufacturer Warranty Included

  • ✓ Fast & Free Shipping
  • ✓ Flexible Financing Available
  • ✓ 30-Day Returns
  • ✓ 24/7 Support

Delivery: 5–10 Business Days

Use code:

ADVENTURE5 (Extra 5% OFF)

Stack extra discounts? Call (877) 834-4299

Renogy 400W 12V Complete Solar Panel Kit Renogy 400W 12V Complete Solar Panel Kit Renogy 400W 12V Complete Solar Panel Kit Renogy 400W 12V Complete Solar Panel Kit
Renogy 400W 12V Complete Solar Panel Kit Renogy 400W 12V Complete Solar Panel Kit Renogy 400W 12V Complete Solar Panel Kit Renogy 400W 12V Complete Solar Panel Kit
Renogy 400W 12V Complete Solar Panel Kit

Renogy

Renogy 400W 12V Complete Solar Panel Kit with 3.6kWh Battery

SKU RKIT400BD-R40D4-LCFP3-P3-US

Have Questions?

Talk to an Expert

Our U.S.-based team can help you choose the right gear, configure the perfect setup, or put together a custom quote for your project.

Call (877) 834-4299 Request a Quote

Payment & Security

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimated Shipping Time

We offer free shipping on all orders across the contiguous United States. Orders are typically processed within 1–3 business days, and standard delivery takes 5–10 business days. Freight and oversized items take 7–14 business days and may require a scheduled delivery.

What Is Your Return Policy?

We offer a 30-day return window on eligible items from the date of delivery. Products must be unused, in original condition, and returned in their original packaging. To start a return, contact us at support@adventuremotion.com or call (877) 834-4299. Return shipping costs may apply for non-defective items. Damaged or defective items are replaced at no cost to you.

Frequently Asked Questions

Do you offer financing?

Yes — we partner with Affirm so you can split your purchase into easy monthly payments with 0% APR options. Just select Affirm at checkout.

Are you an authorized dealer?

Yes. Adventure Motion is an authorized online dealer for all brands we carry. That means your manufacturer warranty is fully valid and protected.

Can you help me choose the right product?

Absolutely. Call us at (877) 834-4299 or email support@adventuremotion.com — our team specializes in outdoor gear and adventure equipment and can match you to the right product.

What if my item arrives damaged?

Contact us within 48 hours of delivery at support@adventuremotion.com. We'll arrange a replacement or exchange at zero cost to you — no questions asked.

Need items in bulk? Contact us for a custom quote or invoice.
Save an additional 3% off your order when paying via ACH or Wire transfer.

Save $120 Today

UP TO
15% OFF

Get up to 15% off sitewide. Or save an additional $120 off any order over $3,000 — use code AM120 at checkout.

AM120
HURRY, THIS DEAL ENDS IN
00Days
:
00Hrs
:
00Min
:
00Sec

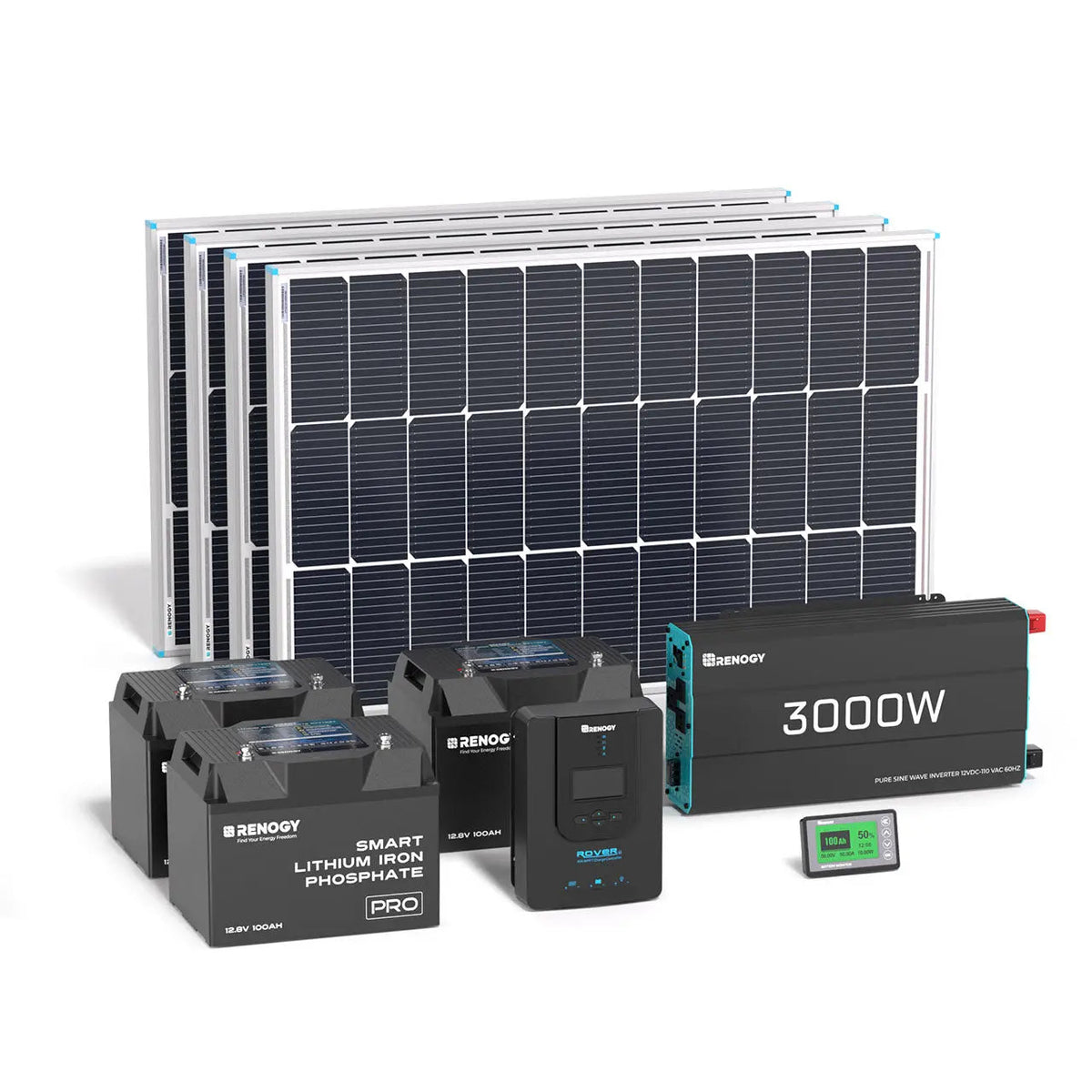

The Renogy 400W 12V Complete Solar Panel Kit with 3.6kWh Battery is a full off-grid power setup well suited to workshops, sheds, and DIY projects. It brings together solar generation, charge control, 3.6kWh of battery storage, and AC output, so a workshop or shed can run on its own solar power independently of the grid.

Four 100W 16BB N-Type panels with up to 25% cell efficiency feed a Rover 40A MPPT charge controller, whose four-stage charging algorithm helps batteries last longer. Storage comes from three 12V 100Ah batteries, available either as Pro Series deep cycle lithium (LiFePO4) batteries or as deep cycle AGM batteries. A 3000W pure sine wave inverter then converts that stored energy into household AC power.

The kit also includes mounting brackets, branch connectors, fusing, interconnect and inverter cables, and a 500A battery monitor with shunt, giving you the pieces needed to wire a complete system and keep an eye on battery status.

Kit Includes

  • 4 x 100W 16BB N-Type Solar Panels
  • 1 x 40A MPPT Solar Charge Controller
  • 3 x 12V 100Ah Batteries (Pro Series Deep Cycle Lithium or Deep Cycle AGM, depending on option)
  • 1 x 3000W 12V Pure Sine Wave Inverter
  • 1 x 500A Battery Monitor with Shunt
  • 1 x Solar Panel Mounting Z Bracket (4 set)
  • 3 x Solar Y Branch Connectors MMF+FFM Pairs
  • 1 x 20FT 10AWG Solar Panel to Charge Controller Adaptor Kit
  • 1 x 8FT 10AWG Battery to Charge Controller Tray Cables
  • 4 x 16in 4AWG Copper Battery Interconnect Cables (5/16 in lugs)
  • 1 x 1FT 8AWG ANL Fuse Cable with Double Ring Terminals
  • 1 x 40A ANL Fuse Set with Fuse
  • 1 x 20A Solar Connector Waterproof In-Line Fuse Holder with Fuse
  • 1 x Battery Inverter Cables (3/8 in lugs)

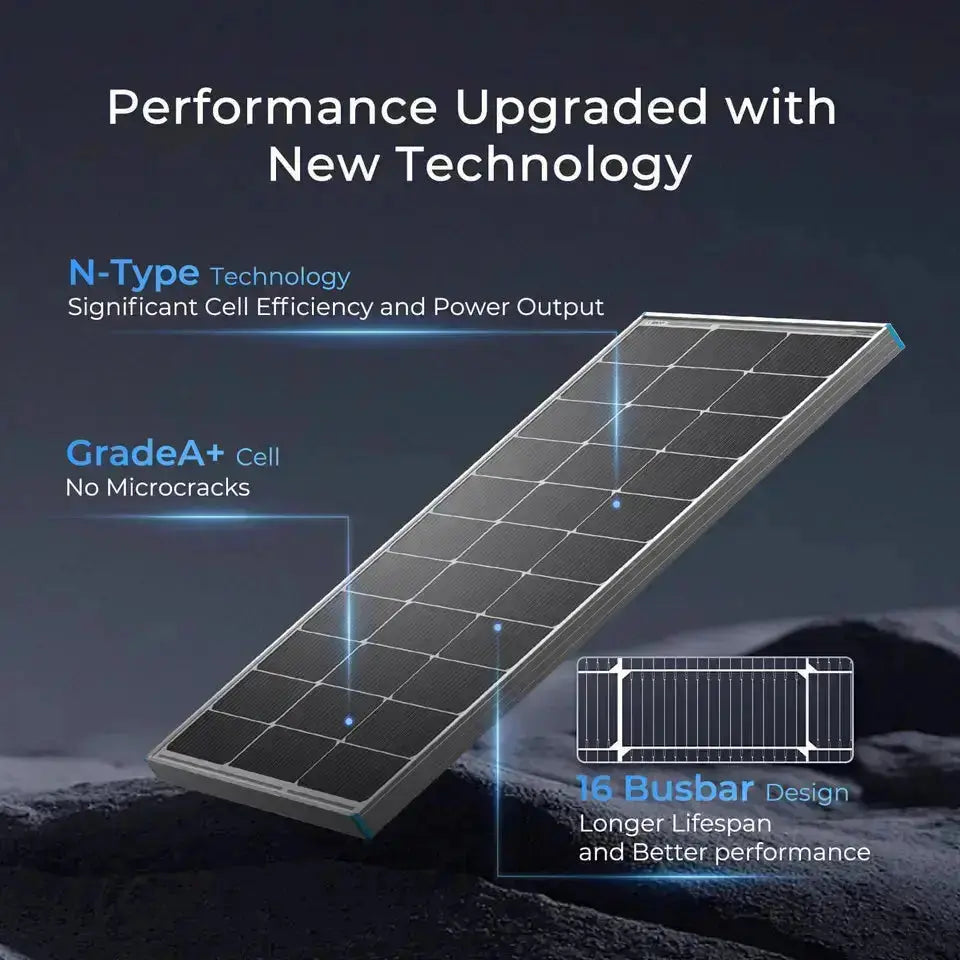

100W 16BB N-Type Solar Panel

  • Max Power at STC: 100W
  • Open Circuit Voltage (Voc): 22.79V
  • Short Circuit Current (Isc): 5.31A
  • Optimum Operating Voltage (Vmp): 19.97V
  • Optimum Operating Current (Imp): 5.01A
  • Operating Temperature: -40°F to 185°F (-40°C to 85°C)
  • Dimensions: 34.1 x 22.8 x 1.2 in (865 x 578 x 30 mm)
  • Weight: 13.0 lb (5.9 kg)

Rover 40A MPPT Solar Charge Controller

  • Nominal System Voltage: 12/24V auto-detect
  • Rated Charge Current: 40A
  • Solar Input Voltage Range (Voc): 15 – 100VDC
  • Max PV Input Power: 520W (12V); 1040W (24V)
  • Power Consumption: <100mA (12V); <58mA (24V)
  • Battery Input Voltage Range: 10 – 32VDC
  • Electrical Protection: Overcharging, over-discharging, overload, short circuit

12V 100Ah Lithium Battery (Lithium Option)

  • Battery Type: Lithium Iron Phosphate
  • Voltage: 12V
  • Rated Capacity: 100Ah (0.5C, 25°C)
  • Voltage Range: 10V – 14.8V
  • Max Charge / Discharge Current: 100A / 100A
  • Peak Discharge Current: 245A @ 30s
  • Cycle Life: 5000 cycles (80% DOD, 80% EOL)
  • Charge Temperature: -4°F to 131°F (-20°C to 55°C)
  • Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
  • Connection Method: Parallel (up to 8)
  • Terminal Bolt Size: M8
  • Protection Rating: IP67
  • Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm)
  • Weight: 26.9 lb (12.2 kg)

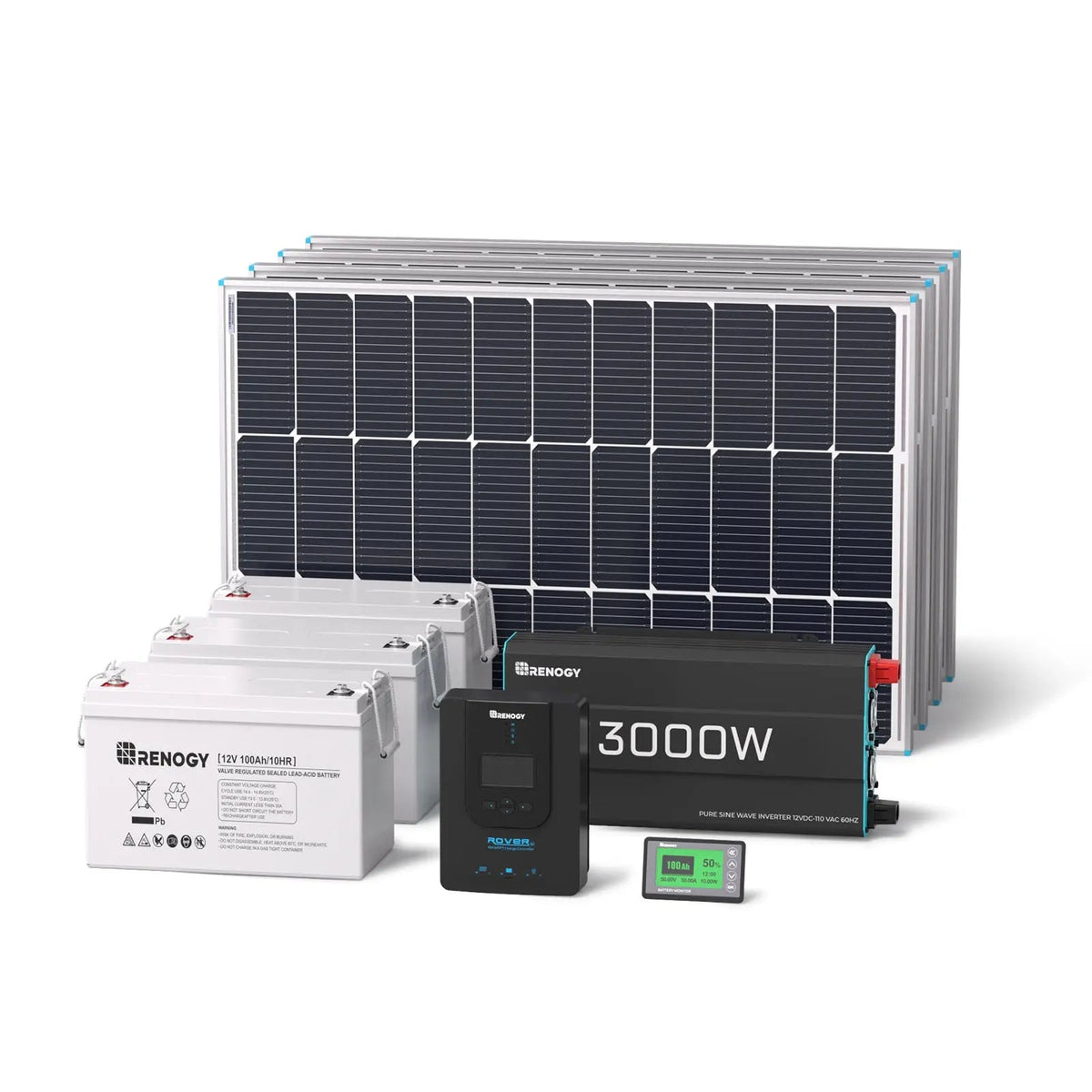

12V 100Ah Deep Cycle AGM Battery (AGM Option)

  • Battery Type: AGM
  • Voltage: 12V
  • Rated Capacity: 100Ah (10-hour rate to 10.5V)
  • Cycle Life: 500 cycles (50% DOD)
  • Connection Method: Series and parallel (up to 4)
  • Dimensions: 13.1 x 6.9 x 8.6 in (332 x 175 x 219 mm)
  • Weight: 63.9 lb (29 kg)

3000W Pure Sine Wave Inverter

  • Continuous Output Power: 3000W
  • Peak Power: 6000W
  • Output Voltage: 120V
  • Output Frequency: 60Hz ±0.1%
  • AC Output Sockets: 3
  • AC Terminal Block: 1
  • USB Port: 5V/2.1A
  • Dimensions: 18.9 x 9.0 x 4.0 in
  • Weight: 12.5 lb

  • Complete 400W off-grid kit designed for workshops, sheds, and DIY projects
  • Four 100W N-Type solar panels with up to 25% cell efficiency
  • 3.6kWh of storage with a choice of lithium or AGM batteries
  • Rover 40A MPPT controller with four-stage charging to extend battery life
  • 3000W pure sine wave inverter for household AC power
  • 500A battery monitor with shunt included
  • Mounting brackets, fusing, and cabling included

What does an off-grid solar system need?
A solar panel must be connected to a charge controller, which regulates current, and to a battery that stores the energy. adapter cables link the panels to the controller, and tray cables connect the controller to a deep-cycle battery. an inverter is also needed to run ac appliances. this kit includes all of these core components.
What does off-grid and on-grid mean?
An on-grid system is connected to the utility grid, while an off-grid system is independent and stores the power it generates in batteries for later use, so it is not affected by grid blackouts.
Why might my solar panels produce less than expected?
Output depends on conditions. indirect sunlight, high temperatures, cloud cover, and dirt or dust on the panel surface can all reduce the power a panel produces.
Can i add more solar panels to the rover 40a controller?
Yes, panels can be added in series or parallel within the controller's limits: 40a maximum charge current, 100vdc maximum pv input voltage, and 520w of solar at 12v or 1040w at 24v.
What is the difference between the lithium and agm options?
Both use three 12v 100ah batteries. the lithium batteries are rated for 5000 cycles at 80% depth of discharge and weigh 26.9 lb each, while the agm batteries are rated for 500 cycles at 50% depth of discharge and weigh 63.9 lb each.
When do i need an inverter?
When you want to power household ac appliances such as a coffee maker or tv. this kit includes a 3000w pure sine wave inverter that converts 12v dc into 120v ac.
