The Renogy 800W 12V Complete Solar Panel Kit with 3.6kWh Battery is an all-in-one off-grid package for cabins, RVs, vans, and remote setups that need to keep essentials like refrigerators, lights, routers, and small appliances powered. It combines four 200W N-Type solar panels, a Rover 60A MPPT charge controller, and three 12V 100Ah lithium batteries for 3.6kWh of storage, together with the mounting hardware, fuses, and cabling to connect it all.

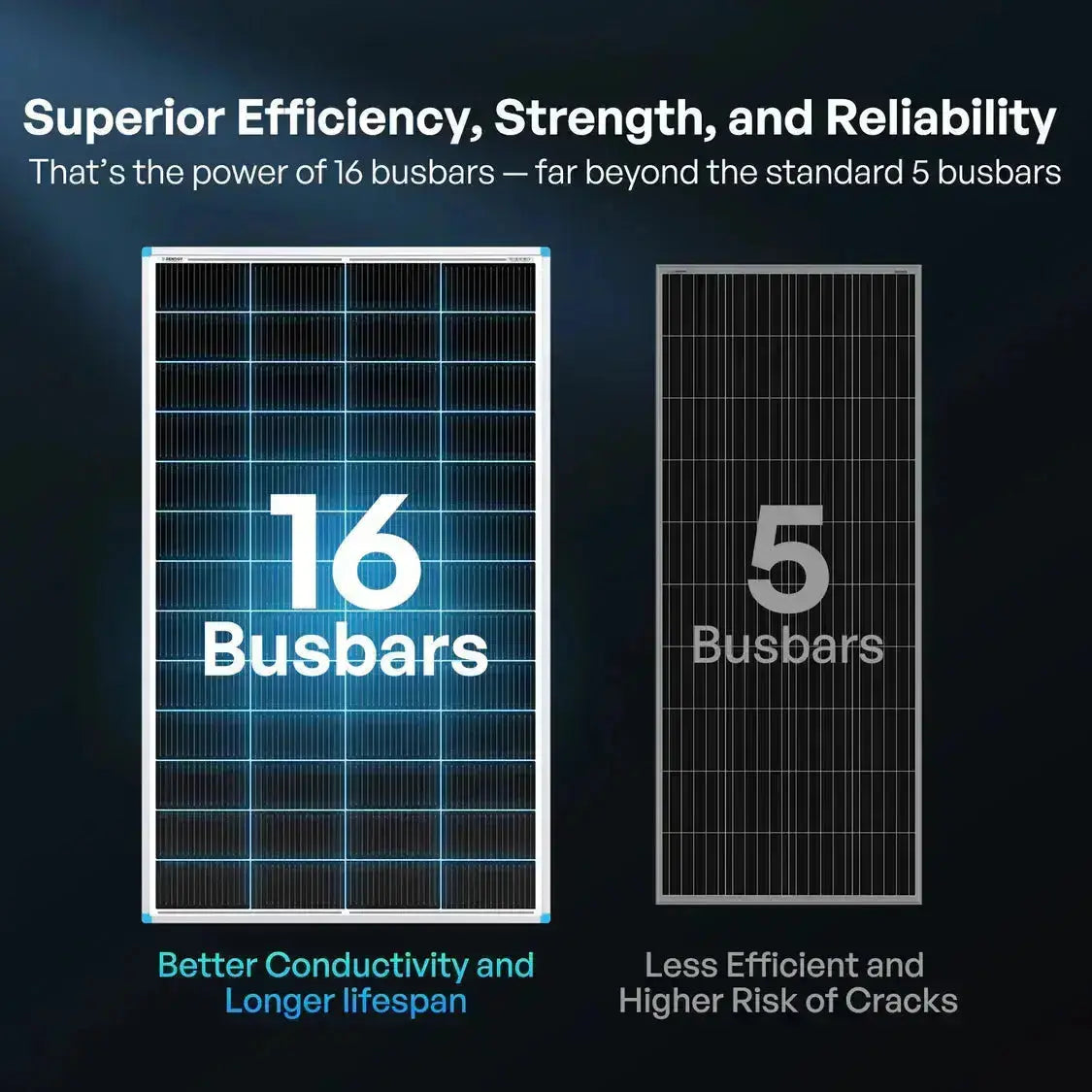

The N-Type panels use a 16-busbar design in a sturdy aluminum alloy frame made to handle rough roads, and the Rover 60A controller manages charging with full electronic protection in a sealed, corrosion-resistant housing. Battery options include Pro Smart lithium batteries with Bluetooth and self-heating, which come with a BT-2 Bluetooth module for app monitoring, or Core Mini lithium batteries whose dual 110W heating pads warm the cells quickly in cold weather.

To run standard household AC devices, you can choose a configuration with a 3000W 12V pure sine wave inverter with GFCI protection, or a REGO 3000W pure sine wave inverter charger that also charges the batteries from AC power and reports live data in the Renogy DC Home app. Inverter configurations add the heavy-duty fuse set and battery inverter cables needed for the AC side of the system.

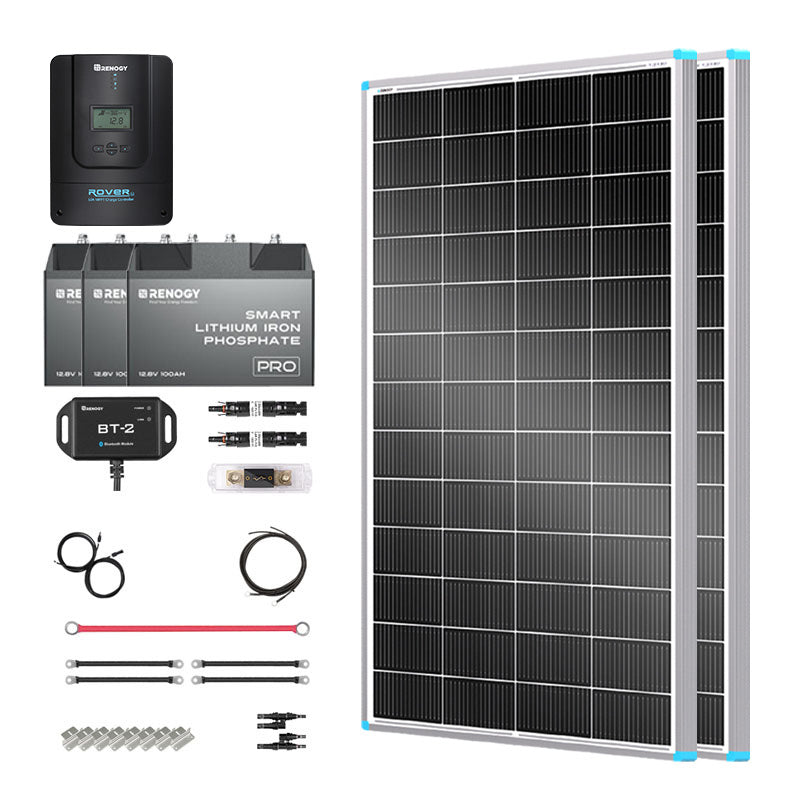

Kit Includes (All Configurations)

  • 4 x 200W 16BB N-Type Solar Panel
  • 1 x Rover 60A MPPT Charge Controller with LCD
  • 3 x 12V 100Ah Lithium Battery (Pro with Bluetooth & Self-Heating, or Core Mini with Self-Heating, per option)
  • Solar Panel Mounting Z Brackets
  • 1 x Solar Y Branch Connectors (MMF+FFM pair)
  • 1 x Solar Panel to Charge Controller Adaptor Kit
  • 1 x Battery to Charge Controller Tray Cables
  • 2 x Fuse Holder with Fuse
  • 1 x 60A ANL Fuse Set with Fuse
  • 1 x Terminals for 3/8 in Lugs
  • 4 x Copper Battery Interconnect Cable

Configuration Add-Ons

  • Pro Lithium Battery options: 1 x BT-2 Bluetooth Module
  • Inverter option: 1 x 3000W 12V Pure Sine Wave Inverter, 1 x 400A ANL Fuse Set, 1 x Battery Inverter Cables
  • Inverter charger option: 1 x REGO 3000W 12V Pure Sine Wave Inverter Charger, 1 x 400A ANL Fuse Set, 1 x Battery Inverter Cables

System Overview

  • Solar Array: 800W (4 x 200W N-Type panels)
  • Battery Storage: 3.6kWh (3 x 12V 100Ah LiFePO4)
  • Charge Controller: Rover 60A MPPT
  • Inverter Options: 3000W 12V Pure Sine Wave Inverter or REGO 3000W Inverter Charger

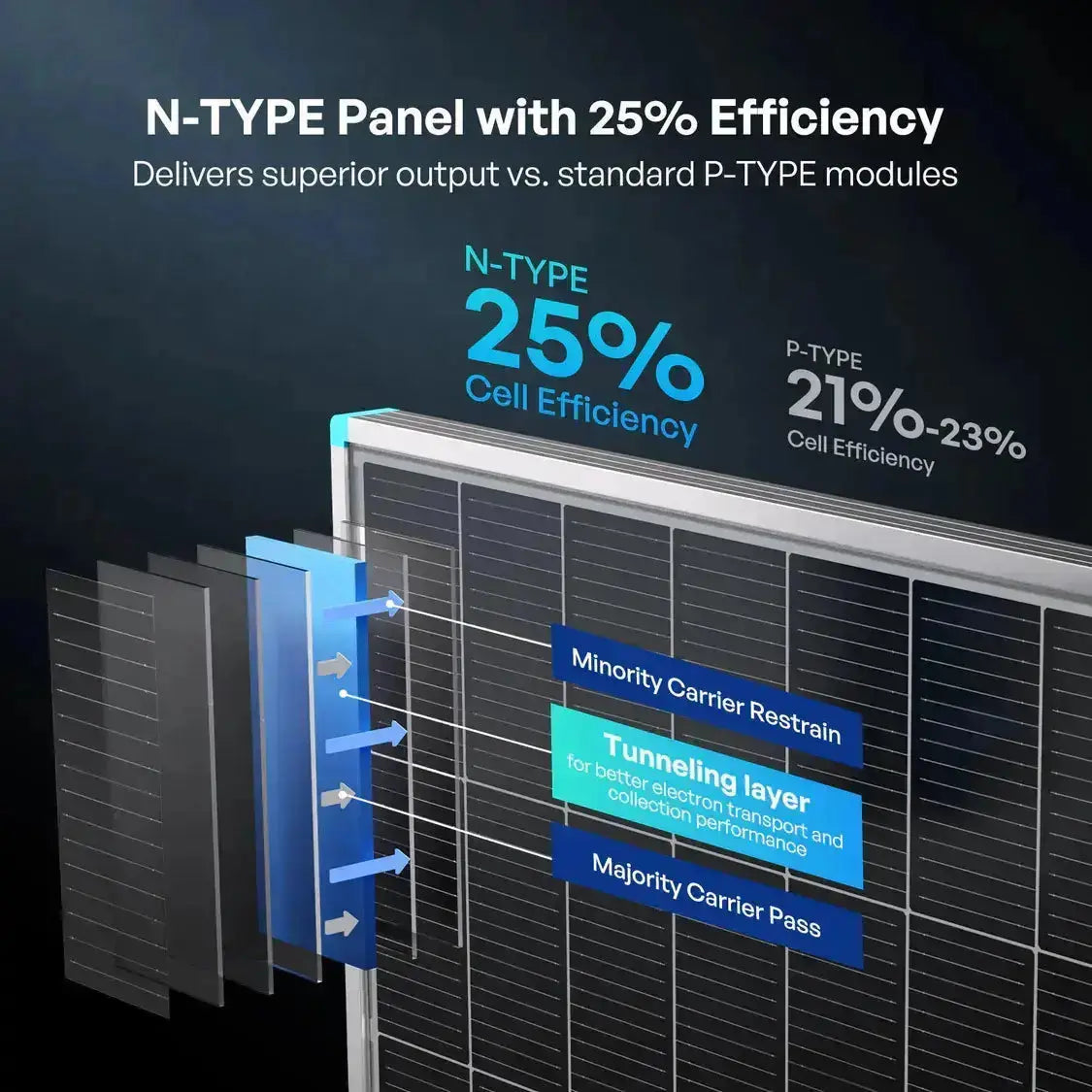

200W N-Type Solar Panel

  • Max Power at STC: 200W
  • Open Circuit Voltage: 37.44V
  • Short Circuit Current: 6.85A
  • Optimum Operating Voltage: 31.03V
  • Optimum Operating Current: 6.45A
  • Maximum System Voltage: 600VDC
  • Maximum Series Fuse Rating: 15A
  • Module Efficiency: 20.7%
  • Operating Temperature: -40°F to 185°F / -40°C to 85°C
  • Dimensions: 49.7 x 30.1 x 1.2 in / 1262 x 764 x 30 mm
  • Weight: 23.4 lbs / 10.6 kg

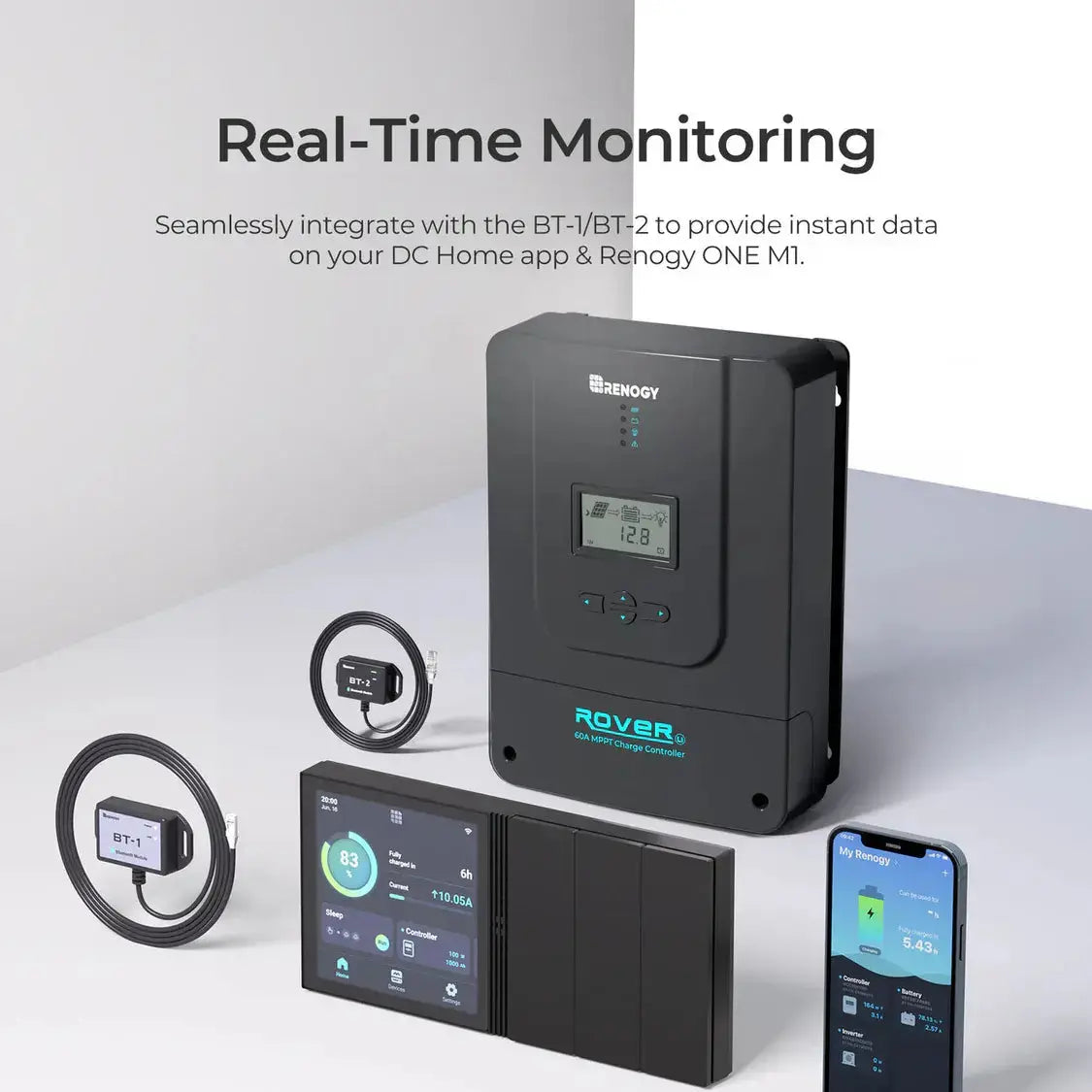

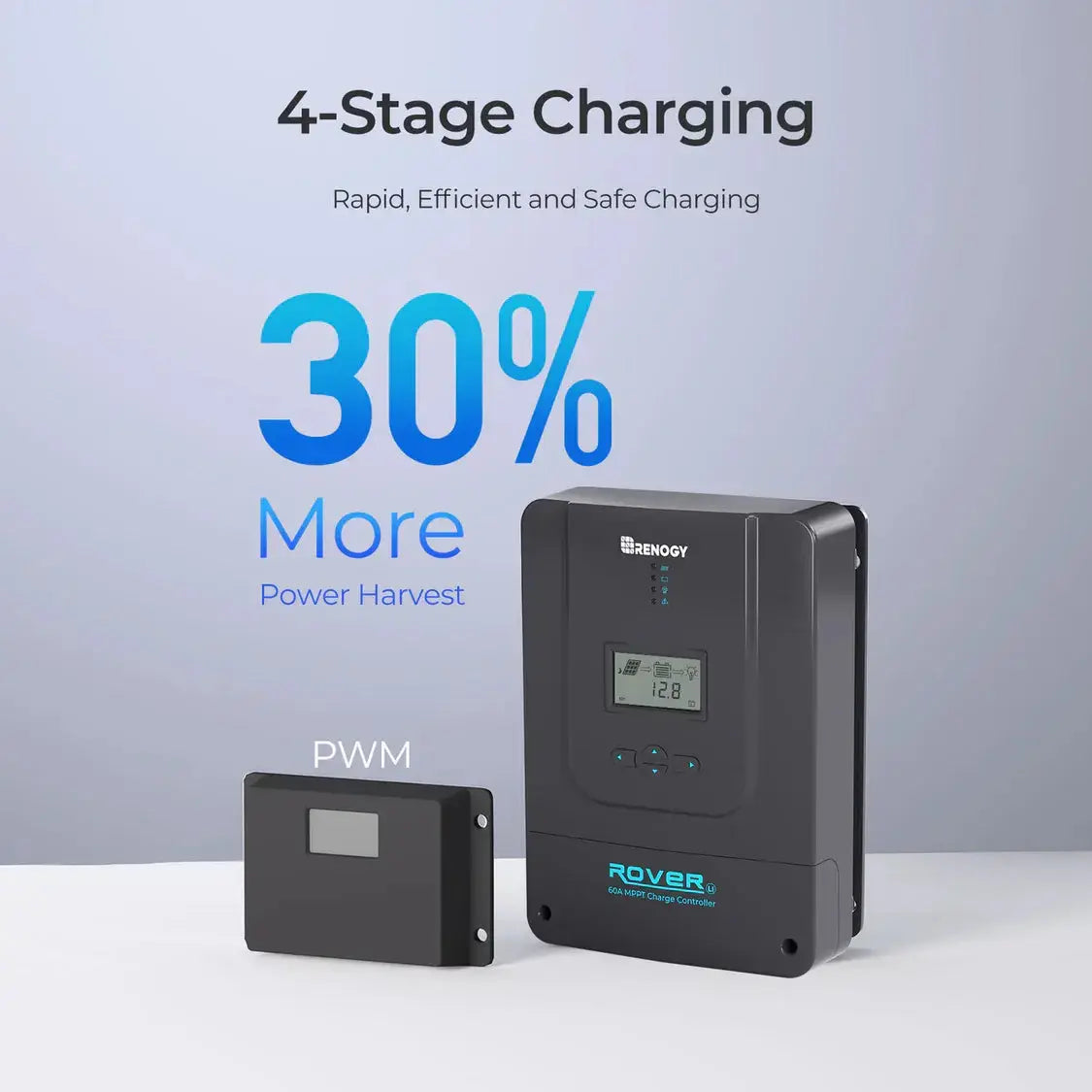

Rover 60A MPPT Charge Controller

  • Nominal Voltage: 12V/24V/36V/48V auto recognition
  • Rated Charge Current: 60A
  • Rated Load Current: 20A
  • Max PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
  • Max PV Input Voltage: 140VDC
  • Terminals: 25mm² / 4AWG
  • Operating Temperature: -31°F to 113°F (-35°C to 45°C)
  • Temperature Compensation: -3mV/°C/2V (default)
  • Dimensions: 11.22 x 8.07 x 4.00 in (285 x 205 x 102 mm)

12V 100Ah Pro Smart Lithium Battery

  • Battery Type: Lithium Iron Phosphate
  • Rated Capacity: 100Ah (0.5C, 25°C)
  • Voltage Range: 10V to 14.8V
  • Max Charge / Discharge Current: 100A / 100A
  • Peak Discharge Current: 245A @ 30s
  • Cycle Life: 5000 cycles (80% DOD, 80% EOL)
  • Charge Temperature: -4°F to 131°F (-20°C to 55°C)
  • Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
  • Connection Method: Parallel (up to 8)
  • Protection Rating: IP67
  • Flame Retardancy: UL94-V0
  • Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm)
  • Weight: 26.9 lbs (12.2 kg)

12V 100Ah Core Mini Lithium Battery

  • Battery Type: Lithium Iron Phosphate
  • Rated Capacity: 100Ah (0.5C, 25°C)
  • Voltage Range: 10V to 14.6V
  • Cycle Life: 5000 cycles (80% DOD)
  • Heating: Dual heating pads, 110W
  • Connection Method: Series & Parallel (up to 4S4P)
  • Dimensions: 9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
  • Weight: 21.38 lbs (9.7 kg)

3000W 12V Pure Sine Wave Inverter

  • Continuous Output Power: 3000W
  • Peak Power: 6000W
  • Output Voltage: 120V
  • Output Frequency: 60 Hz ± 0.1%
  • AC Output Sockets: 3
  • USB Power Port: 5V/2.1A
  • Dimensions: 18.9 x 9.0 x 4.0 in
  • Weight: 12.5 lb

REGO 3000W Pure Sine Wave Inverter Charger

  • Continuous Power: 3000W
  • Surge Power: 9000W
  • AC Output Voltage: 100-120VAC configurable
  • Output Frequency: 50/60 Hz ± 0.1%
  • Efficiency: >90%
  • Nominal Input Voltage: 120VAC
  • Input Voltage Range: 90-138VAC
  • Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm
  • Weight: 63.5 lbs / 28.8 kg

  • 800W of N-Type solar with four 200W 16-busbar panels
  • 3.6kWh of lithium storage from three 12V 100Ah batteries
  • Rover 60A MPPT controller with LCD and comprehensive protections
  • Pro battery option with Bluetooth, self-heating, and 25+ safety protections
  • Core Mini battery option with dual 110W heating pads for faster warming
  • Optional 3000W pure sine wave inverter with GFCI protection
  • Optional REGO 3000W inverter charger with DC Home app monitoring
  • Mounting brackets, fuses, and cables included for a complete install

What does a complete off-grid solar system need?
Solar panels, a charge controller to regulate the current, batteries to store the energy, adaptor cables from the panels to the controller, and tray cables from the controller to the batteries. this kit includes all of these.
What is the difference between off-grid and on-grid?
An on-grid system is tied to the utility grid, while an off-grid system is independent and stores the energy it produces in batteries for later use, so grid outages do not affect it.
When do i need an inverter?
Choose an inverter configuration if you want to run standard household ac appliances such as a coffee maker or tv. the inverter converts 12v dc battery power to 120v ac.
Will this kit run my air conditioner?
Check the ac unit's power rating in watts, multiply by the hours you plan to run it to get watt-hours, divide by your location's peak sun hours, and multiply by a safety factor of 1.5 to 2 to estimate the solar wattage required. compare that to the kit's 800w array and 3.6kwh storage.
Which battery option includes bluetooth?
The pro lithium battery configurations have built-in bluetooth and include a bt-2 bluetooth module for app monitoring. the core mini batteries offer self-heating without built-in bluetooth.
What is the difference between the inverter and the inverter charger options?
The 3000w inverter converts battery power to ac. the rego 3000w inverter charger also charges the batteries from an ac source and can be monitored in the renogy dc home app.
