Renogy Core Mini - LiFePO4 12.8V 300/200/100Ah Lithium Batteries

SKU RBT12200LFP-M-US
$653.99
Brand Logo

Authorized Renogy Dealer

Manufacturer Warranty Included

  • ✓ Fast & Free Shipping
  • ✓ Flexible Financing Available
  • ✓ 30-Day Returns
  • ✓ 24/7 Support

Delivery: 5–10 Business Days

Use code:

ADVENTURE5 (Extra 5% OFF)

Stack extra discounts? Call (877) 834-4299

Renogy Core Mini LiFePO4 Lithium Batteries Renogy Core Mini LiFePO4 Lithium Batteries Renogy Core Mini LiFePO4 Lithium Batteries Renogy Core Mini LiFePO4 Lithium Batteries Renogy Core Mini LiFePO4 Lithium Batteries
Renogy Core Mini LiFePO4 Lithium Batteries Renogy Core Mini LiFePO4 Lithium Batteries Renogy Core Mini LiFePO4 Lithium Batteries Renogy Core Mini LiFePO4 Lithium Batteries Renogy Core Mini LiFePO4 Lithium Batteries
Renogy Core Mini LiFePO4 Lithium Batteries

Renogy

Renogy Core Mini - LiFePO4 12.8V 300/200/100Ah Lithium Batteries

SKU RBT12200LFP-M-US

Have Questions?

Talk to an Expert

Our U.S.-based team can help you choose the right gear, configure the perfect setup, or put together a custom quote for your project.

Call (877) 834-4299 Request a Quote

Payment & Security

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimated Shipping Time

We offer free shipping on all orders across the contiguous United States. Orders are typically processed within 1–3 business days, and standard delivery takes 5–10 business days. Freight and oversized items take 7–14 business days and may require a scheduled delivery.

What Is Your Return Policy?

We offer a 30-day return window on eligible items from the date of delivery. Products must be unused, in original condition, and returned in their original packaging. To start a return, contact us at support@adventuremotion.com or call (877) 834-4299. Return shipping costs may apply for non-defective items. Damaged or defective items are replaced at no cost to you.

Frequently Asked Questions

Do you offer financing?

Yes — we partner with Affirm so you can split your purchase into easy monthly payments with 0% APR options. Just select Affirm at checkout.

Are you an authorized dealer?

Yes. Adventure Motion is an authorized online dealer for all brands we carry. That means your manufacturer warranty is fully valid and protected.

Can you help me choose the right product?

Absolutely. Call us at (877) 834-4299 or email support@adventuremotion.com — our team specializes in outdoor gear and adventure equipment and can match you to the right product.

What if my item arrives damaged?

Contact us within 48 hours of delivery at support@adventuremotion.com. We'll arrange a replacement or exchange at zero cost to you — no questions asked.

Need items in bulk? Contact us for a custom quote or invoice.
Save an additional 3% off your order when paying via ACH or Wire transfer.

Save $120 Today

UP TO
15% OFF

Get up to 15% off sitewide. Or save an additional $120 off any order over $3,000 — use code AM120 at checkout.

AM120
HURRY, THIS DEAL ENDS IN
00Days
:
00Hrs
:
00Min
:
00Sec

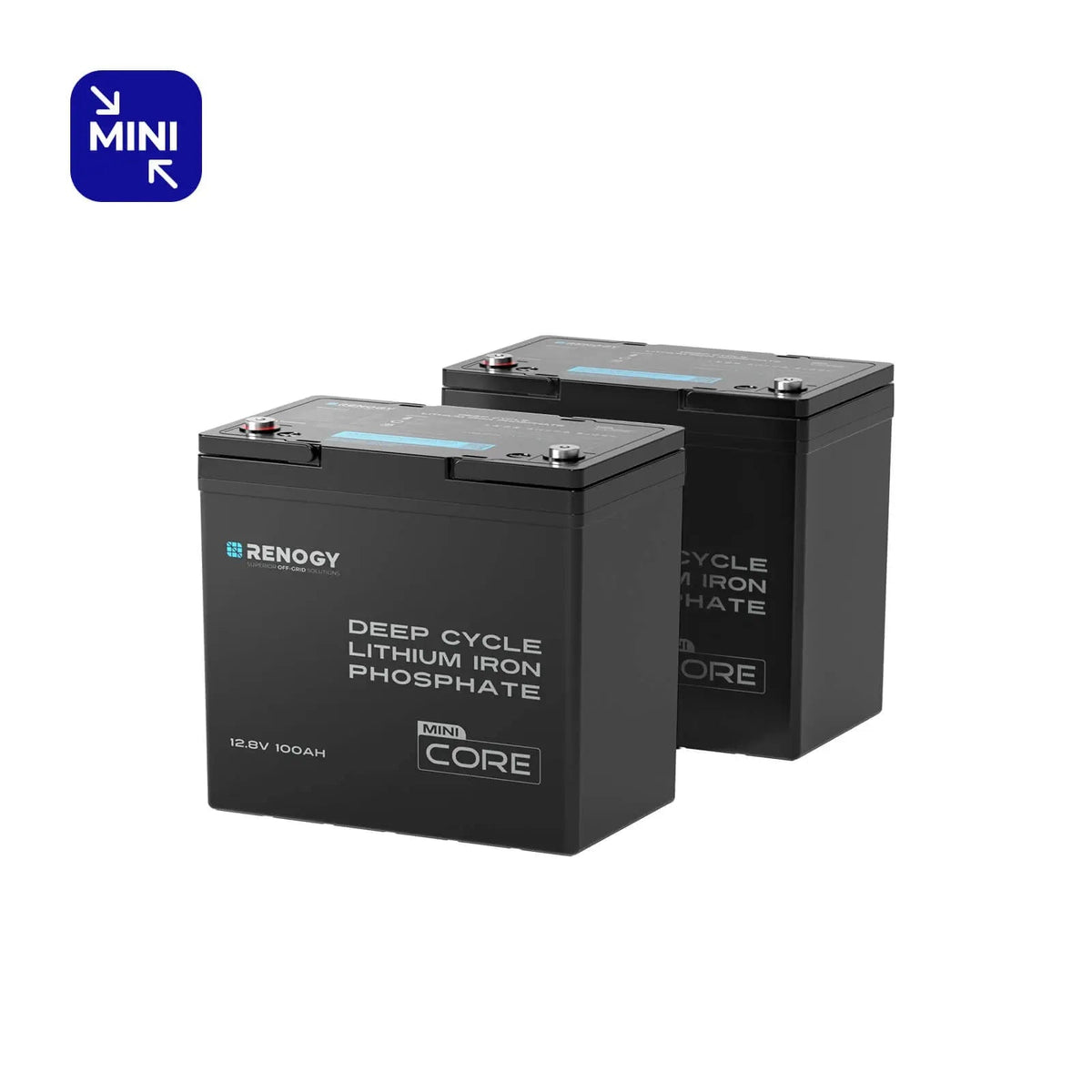

The Renogy Core Mini LiFePO4 12.8V 300/200/100Ah Lithium Batteries are a compact family of lithium iron phosphate batteries made for teardrop trailers, small RVs, vans, boats, and home backup setups where space is tight. Each size delivers the usable capacity of a much larger lead-acid battery while taking up less room and weighing a fraction as much.

The 100Ah model fits a Group 22NF footprint, and the 200Ah and 300Ah models share a single compact case. All three are rated for 5,000 cycles at 80% depth of discharge, use metal cell spacers to resist vibration on rough roads and choppy water, and carry an IP65 rating for dust and splash protection. A battery management system with low-temperature cut-off stops charging below freezing, so the cells are protected during cold-weather trips without you needing to step in.

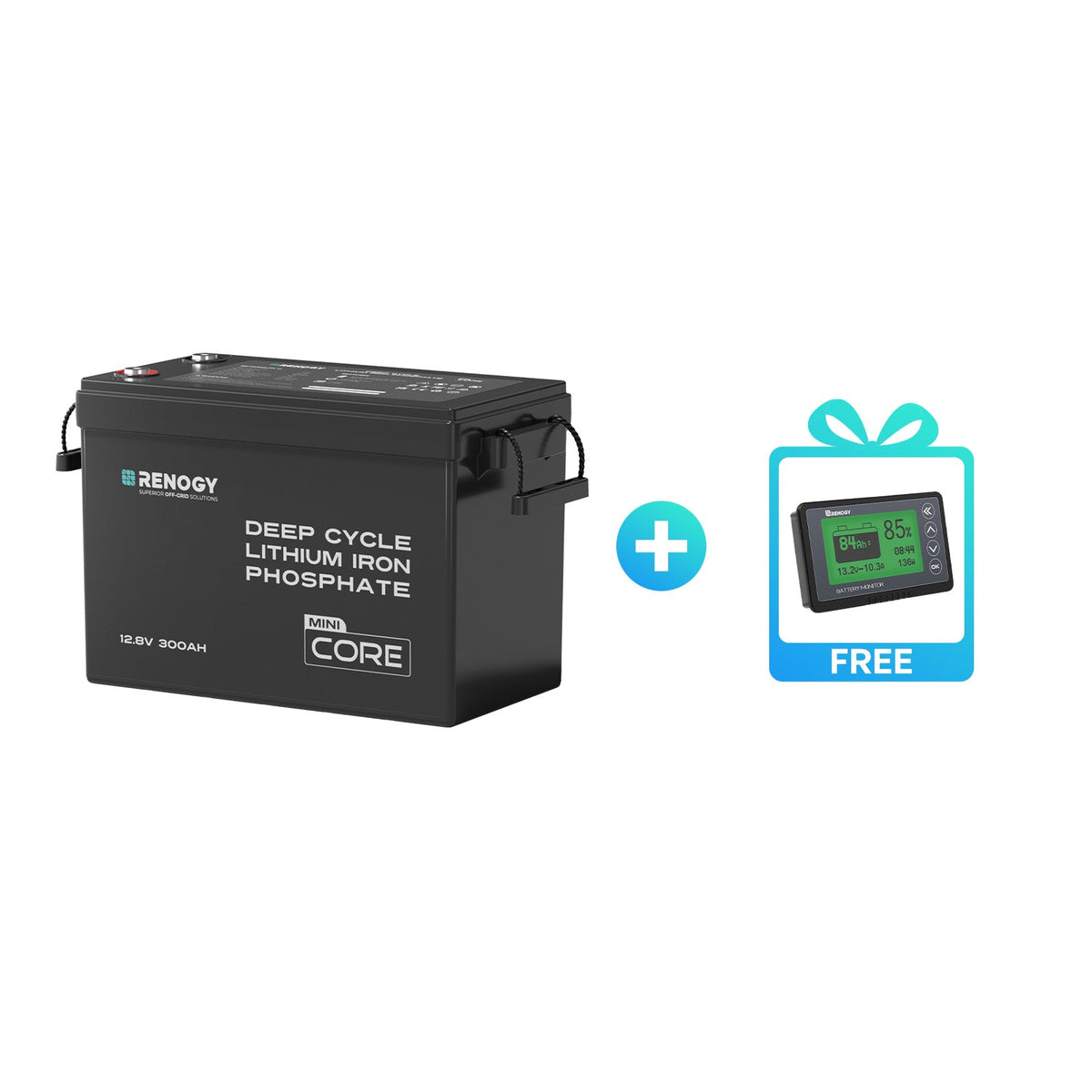

The batteries can be linked in series and parallel for bigger banks and higher system voltages. They do not include Bluetooth, but they can be paired with a Renogy battery shunt or monitor to track state of charge from your phone. Single batteries, multi-packs, and a 300Ah bundle with a battery monitor are available.

What's in the Box (per battery)

  • 1 x Core Mini 12.8V LiFePO4 Battery (100Ah, 200Ah or 300Ah)
  • Terminal bolts
  • 1 x User Manual

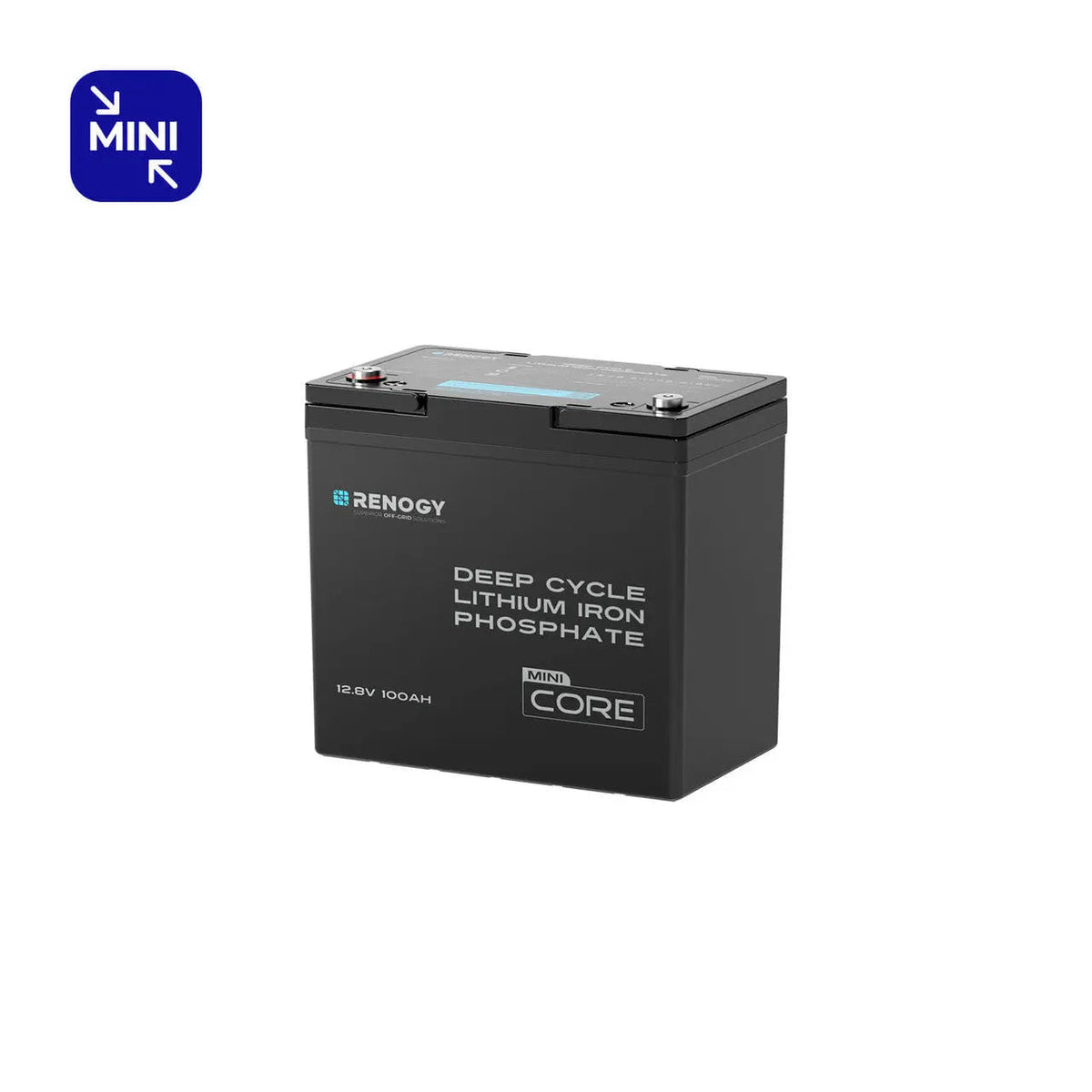

Core Mini 12.8V 100Ah

  • Rated Capacity: 100Ah (0.5C, 25°C)
  • Voltage Range: 10V to 14.8V
  • Max Charge Current: 100A
  • Max Discharge Current: 100A
  • Peak Discharge Current: 300A @ 5s
  • Cycle Life: 5000 cycles (80% DOD, 80% EOL)
  • Charge Temperature: 32°F to 122°F (0°C to 50°C)
  • Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
  • Storage Temperature: -13°F to 149°F (-25°C to 65°C)
  • Connection Method: Series & Parallel (4S4P)
  • Terminal Bolt Size: M8 x 1.25 x 12 mm
  • Recommended Terminal Torque: 88.5 to 106.2 in·lbs / 10 to 12 N·m
  • Protection Rating: IP65
  • Dimensions: 9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
  • Weight: 21.8 lbs / 9.9 kg

Core Mini 12.8V 200Ah

  • Rated Capacity: 200Ah (0.5C, 25°C)
  • Energy: 2560Wh
  • Voltage Range: 10V to 14.6V
  • Max Continuous Charge Current: 100A
  • Max Continuous Discharge Current: 200A
  • Peak Discharge Current: 380A @ 10s
  • Cycle Life: 5000 cycles (80% DOD, 80% EOL)
  • Charge Temperature: 32°F to 131°F (0°C to 55°C)
  • Discharge Temperature: -4°F to 149°F (-20°C to 65°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Terminal Bolt Size: M8 x 1.25 x 12 mm & M8 x 1.25 x 16 mm
  • Protection Rating: IP65
  • Dimensions: 15.12 x 7.64 x 9.96 in / 384 x 194 x 253 mm
  • Weight: 42.44 lbs / 19.25 kg

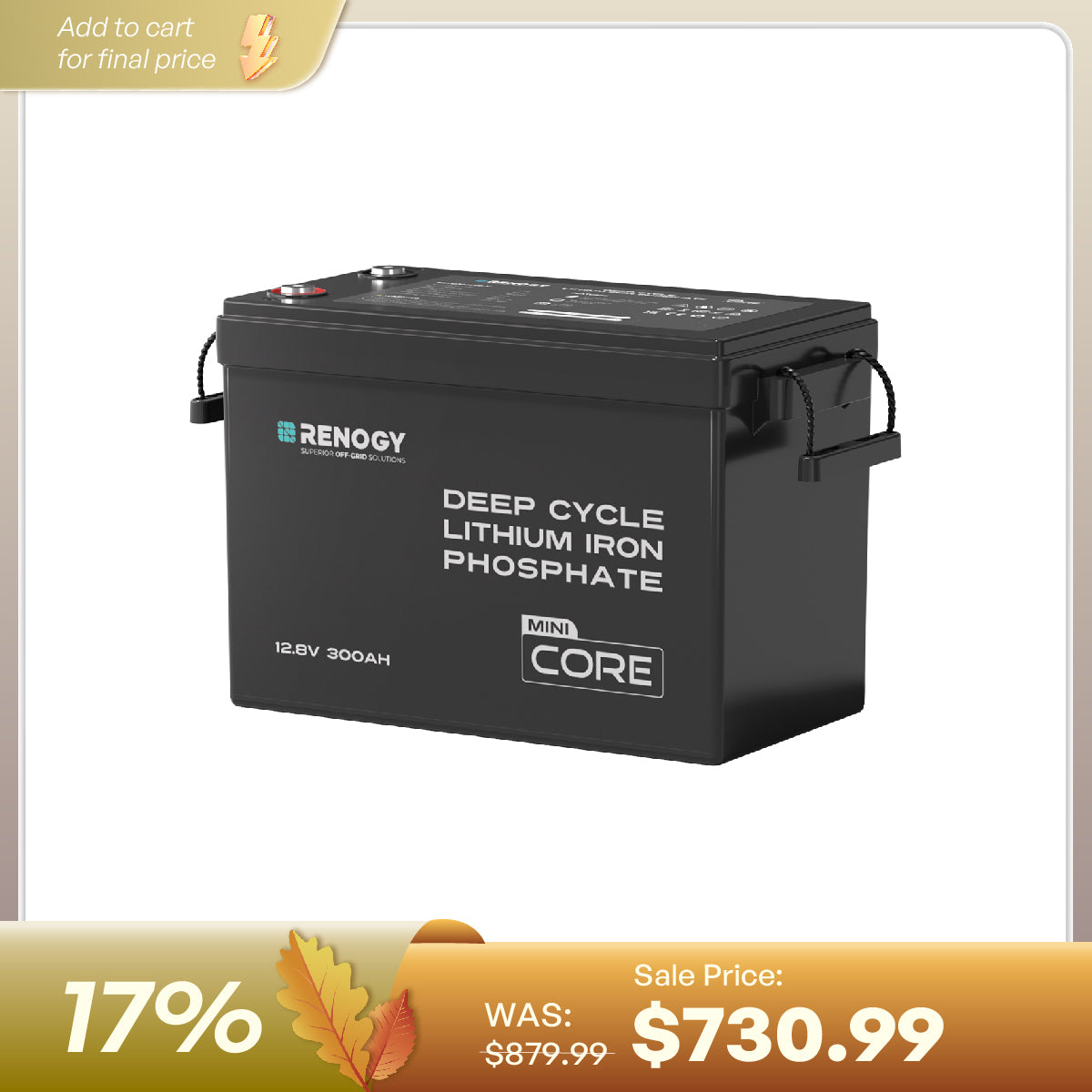

Core Mini 12.8V 300Ah

  • Rated Capacity: 300Ah (0.5C, 25°C)
  • Energy: 3840Wh
  • Voltage Range: 10V to 14.8V
  • Max Charge Current: 150A
  • Max Discharge Current: 200A
  • Peak Discharge Current: 380A @ 10s
  • Cycle Life: 5000 cycles (80% DOD)
  • Charge Temperature: 32°F to 140°F (0°C to 60°C)
  • Discharge Temperature: -4°F to 149°F (-20°C to 65°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Connection Method: Series & Parallel (4S4P)
  • Terminal Bolt Size: M8 x 1.25 x 12 mm & M8 x 1.25 x 16 mm
  • Recommended Terminal Torque: 70.8 in·lbs / 8 N·m
  • Protection Rating: IP65
  • Dimensions: 15.12 x 7.64 x 9.96 in / 384 x 194 x 253 mm
  • Weight: 55.1 lbs / 25.0 kg

Certifications

  • Certified: MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS, UKCA

  • Compact LiFePO4 design; the 100Ah model fits a Group 22NF footprint
  • Rated for 5,000 cycles at 80% depth of discharge
  • Built-in low-temperature charging cut-off for safe cold-weather use
  • High peak discharge (300A on the 100Ah, 380A on the 200Ah and 300Ah) for appliance start-up
  • Metal cell spacers and vibration-resistant construction
  • IP65-rated against dust and water splashes
  • Series and parallel connection, up to 16 batteries (4S4P)
  • Remote monitoring possible with a Renogy battery shunt or monitor (sold separately)

Can core mini batteries be wired in series for 24v or 48v systems?
Yes. they can be connected in series for 24v, 36v, or 48v systems, and in series-parallel for larger banks. up to 4 in series, 4 in parallel, or 16 in a series-parallel layout, using batteries of the same model and similar capacity.
Do these batteries have low-temperature protection?
Yes. the battery management system blocks charging when the cells are below 32°f (0°c).
Do core mini batteries have bluetooth?
No. they have no bluetooth port, but you can add a renogy battery shunt or battery monitor (sold separately) to follow battery status in the app.
How long do core mini batteries last?
They are rated for 5,000 cycles at a recommended 80% depth of discharge.
How should i charge them?
You can charge them from solar, a dc-dc charger, or an ac-dc charger. use a charge controller or charger that supports lithium iron phosphate batteries.
Can i connect solar panels directly to the battery?
No. always use a solar charge controller sized for your panels' output between the panels and the battery.
