The Renogy ShadowFlux 120W/200W N-Type Anti-Shading Solar Panel is a rigid solar panel built to keep producing power when part of it falls into shade. On a typical panel, a single shaded cell can drag down the output of the whole module; ShadowFlux uses cell-level shadow management so that shadows from roof vents, antennas, power lines, tree branches, or bird droppings cost far less power, delivering up to 85% more output in partial shade.

The panel uses 16-busbar N-Type cells with 25% cell efficiency, which perform well in high heat and weak light. Its compact footprint packs a lot of wattage into limited space, making it a strong match for RV and van roofs where vents and other rooftop equipment leave only small mounting areas. The high operating voltage works with both 12V and 24V battery systems when paired with a standard MPPT charge controller.

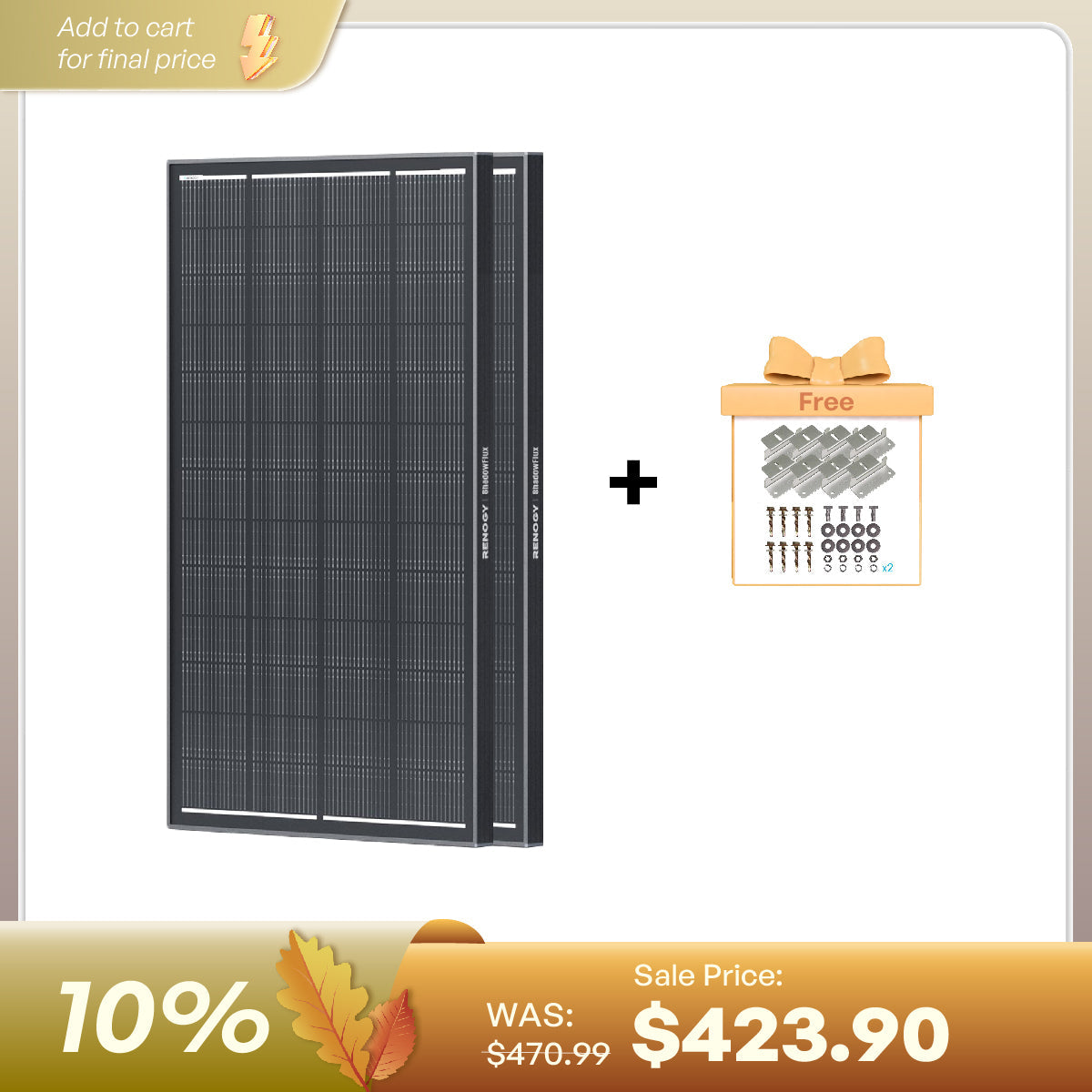

An IP67 rating protects the panel against rain, snow, dust, and road vibration. The 120W size is available in 2-panel and 4-panel packs, and a 600W 12V anti-shading kit option is built around three 200W ShadowFlux panels for a ready-to-install system.

200W ShadowFlux Panel

  • Max Power at STC: 200W
  • Open Circuit Voltage: 36.5V
  • Short Circuit Current: 6.86A
  • Optimum Operating Voltage: 31.3V
  • Optimum Operating Current: 6.38A
  • Maximum System Voltage: 1000VDC
  • Maximum Series Fuse Rating: 15A
  • Module Efficiency: 20.7%
  • Cell Type: N-Type
  • Cell Efficiency: 25%
  • Busbars: 16
  • Anti-Shading Technology: Cell-level shadow management
  • Operating Temperature: -40°F to 185°F / -40°C to 85°C
  • Protection Rating: IP67
  • Dimensions: 49.69 x 30.08 x 1.18 in
  • Weight: 23.83 lb / 10.81 kg

120W ShadowFlux Panel

  • Max Power at STC: 120W
  • Open Circuit Voltage: 33.69V
  • Short Circuit Current: 4.57A
  • Optimum Operating Voltage: 28.89V
  • Optimum Operating Current: 4.21A
  • Maximum System Voltage: 1000VDC
  • Maximum Series Fuse Rating: 15A
  • Cell Type: N-Type
  • Cell Efficiency: 25%
  • Busbars: 16
  • Anti-Shading Technology: Cell-level shadow management
  • Operating Temperature: -40°F to 185°F / -40°C to 85°C
  • Protection Rating: IP67
  • Dimensions: 41.42 x 22.76 x 1.18 in / 1052 x 578 x 30 mm
  • Weight: 15.87 lb / 6.80 kg

  • ShadowFlux anti-shading technology delivers up to 85% more output in partial shade
  • Keeps charging when shadows would stop conventional panels
  • N-Type cells with 25% cell efficiency and 16-busbar design
  • Strong performance in heat and low light
  • Compact, high power density design for limited roof space
  • IP67 waterproof, built for rain, snow, dust, and vibration
  • High voltage output compatible with 12V and 24V systems
  • Works with standard MPPT charge controllers

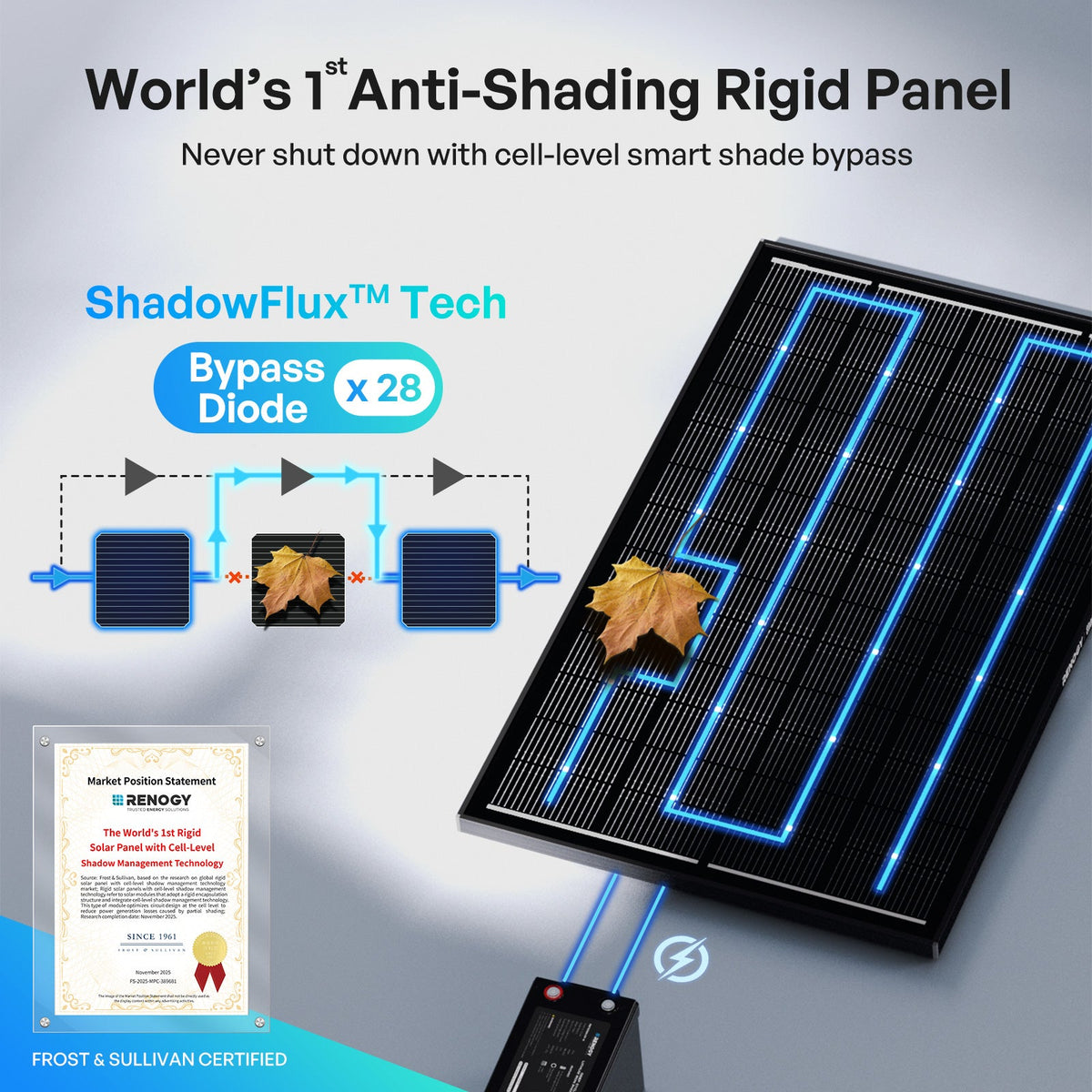

How does shadowflux handle shade better than a regular panel?
On a conventional panel, one shaded cell can cause a large power drop. shadowflux uses cell-level shadow management so the rest of the panel keeps generating power when part of it is shaded.

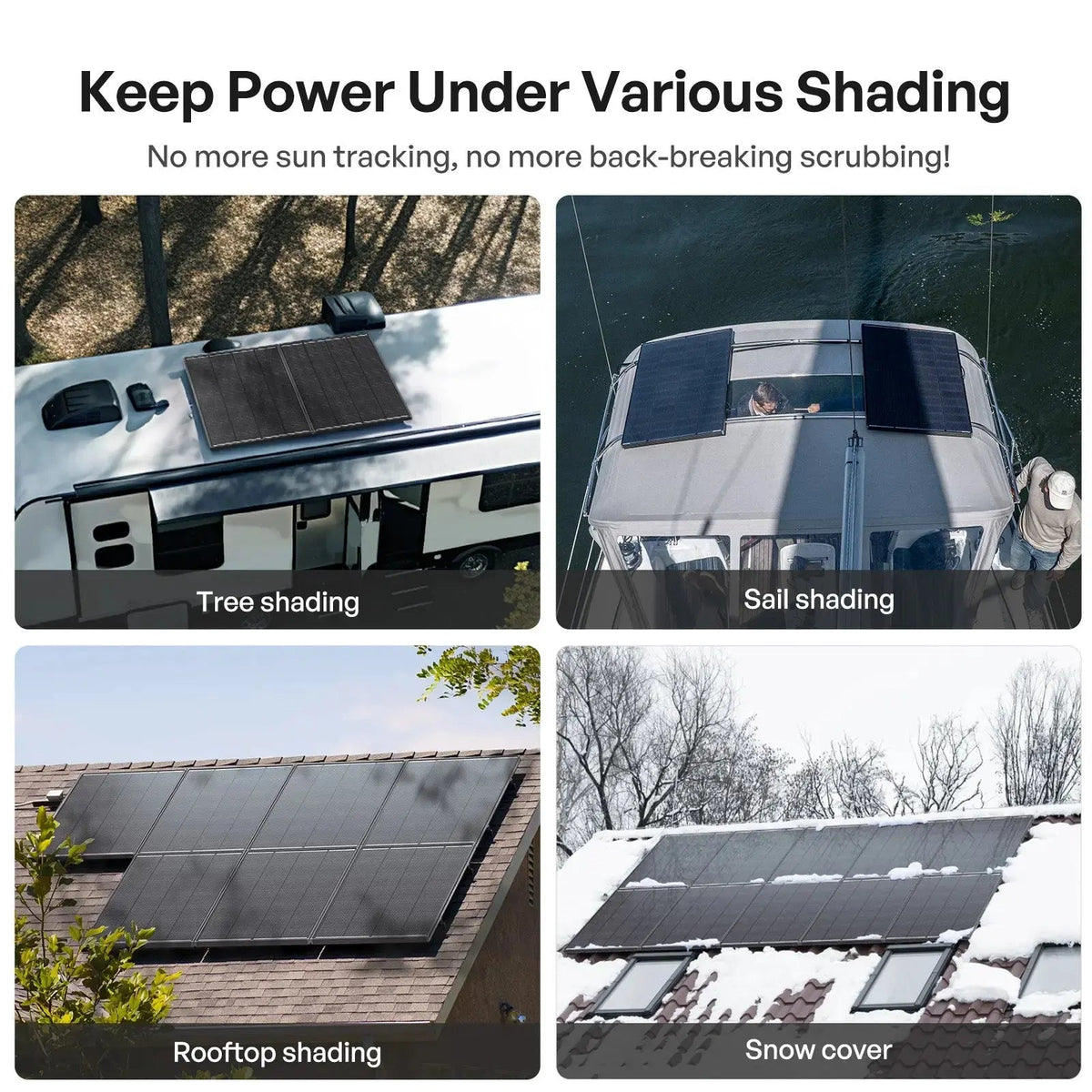

What kinds of shade is it designed for?
Small spot shadows such as bird droppings, leaves, or mud; linear shadows from power lines, antenna wires, or boat rigging; patchy shadows from chimneys, vents, or branches; and moving shadows from clouds or shifting objects.
Is shadowflux for 12v or 24v systems?
Both. its high open-circuit voltage (36.5v on the 200w panel) makes it compatible with 12v and 24v battery systems.
What charge controller should i use?
Renogy strongly recommends an mppt charge controller, which makes full use of the panel's voltage even in weak or changing sunlight.
What warranty does the panel have?
A 5-year material and workmanship warranty and a 25-year guarantee of 80% output.
